Low One-Way Clutch Exploded View

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

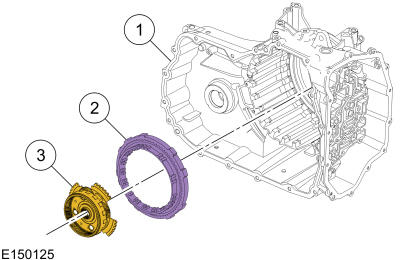

GFD228789Courtesy of FORD MOTOR COMPANY
Item  Description
1 Transmission case
2 Low One-Way Clutch
3 Rear planetary carrier
