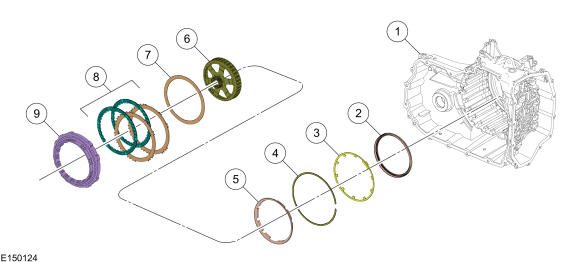

Intermediate (2, 6) Clutch Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Intermediate clutch piston |
| 3 | Intermediate clutch piston return spring |
| 4 | Intermediate clutch piston return spring snap ring |
| 5 | Intermediate clutch apply ring |
| 6 | Rear planetary sun gear and shell assembly |
| 7 | Intermediate clutch wave spring |
| 8 | Intermediate clutch assembly |
| 9 | Low/One-Way Clutch (OWC) |
