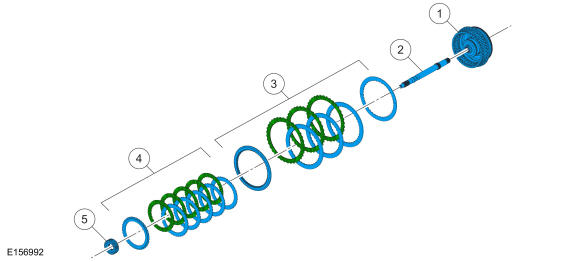

Input Shaft Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Direct (3, 5, R)/overdrive (4, 5, 6) clutch hub |
| 2 |
Input shaft |
| 3 |
Direct (3, 5, R) clutch |
| 4 |
Overdrive (4, 5, 6) clutch |
| 5 |
Center planetary sun gear |
