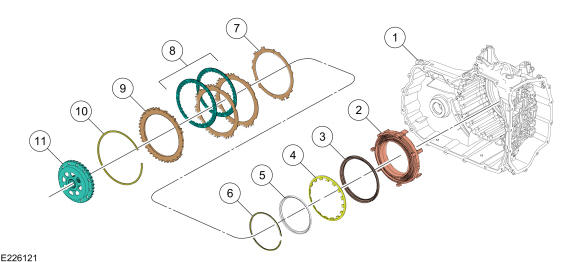

Forward (1, 2, 3, 4) Clutch Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Transmission case |
| 2 | Center support |
| 3 | Forward (1, 2, 3, 4) clutch piston |
| 4 | Forward (1, 2, 3, 4) clutch piston return spring |
| 5 | Forward (1, 2, 3, 4) clutch piston snap ring retainer |
| 6 | Forward (1, 2, 3, 4) clutch piston snap ring |
| 7 | Forward (1, 2, 3, 4) clutch wave spring |
| 8 | Forward (1, 2, 3, 4) clutch |
| 9 | Forward (1, 2, 3, 4) clutch pressure plate |
| 10 | Forward (1, 2, 3, 4) clutch snap ring |
| 11 | Front sun gear and shell assembly |
