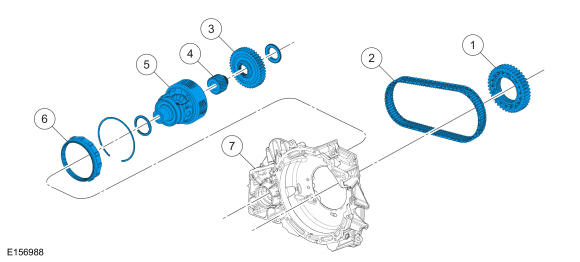

Final Drive Component Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Drive chain drive sprocket |
| 2 |
Drive chain |
| 3 |
Drive chain driven sprocket |
| 4 |
Final drive planetary sun gear |
| 5 |
Differential assembly |
| 6 |
Final drive planetary ring gear |
| 7 |
Torque converter housing |
