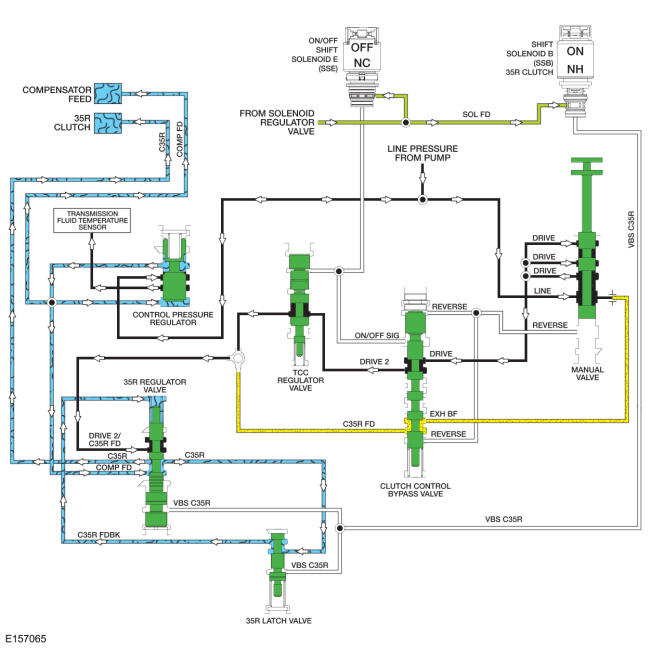

Direct (3, 5, R) Clutch Hydraulic Circuits (Released)
When the direct (3, 5, R) clutch is released, solenoid pressure from SSB is removed from the 35R regulator and latch valves which positions the valves to block line pressure and release the direct (3, 5, R) clutch. When the direct (3, 5, R) clutch is released in the PARK or NEUTRAL position, line pressure is not supplied to the 35R regulator valve.
Compensator feed pressure is supplied to the 35R regulator valve from the control pressure regulator through the COMP FD circuit and is supplied to the opposite side of the direct (3, 5, R) and overdrive (4, 5, 6) clutch pistons to keep the clutches from centrifugally applying. COMP FD pressure is only about 83 kPa (12 psi) and is applied through all gears. When the direct (3, 5, R) clutch is released, COMP FD is applied by the 35R regulator valve to the direct (3, 5, R) clutch to fill the unused circuits.
For details on valve body hydraulic circuits and solenoid operation. For additional information, refer to: Transmission Description - System Operation and Component Description .
