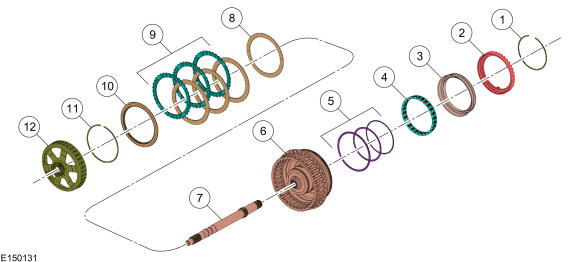

Direct (3, 5, R) Clutch Exploded View
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Direct clutch cylinder snap ring |
| 2 | Direct clutch cylinder |
| 3 | Direct clutch piston |
| 4 | Direct clutch piston return spring |
| 5 | Direct clutch piston seals |
| 6 | Direct/overdrive clutch hub |
| 7 | Input shaft |
| 8 | Direct clutch wave spring |
| 9 | Direct (3, 5, R) clutch assembly |
| 10 | Direct clutch pressure plate |
| 11 | Direct clutch snap ring |
| 12 | Rear planetary sun gear and shell assembly |
