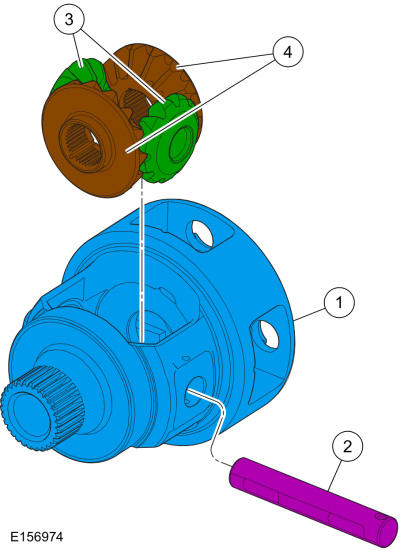

Differential Exploded View

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Differential housing
2	Pinion shaft
3	Pinion gears
4	Side gears
