Ride Height Measurement
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| Surface Gauge |
|---|
Check
Front Ride Height Measurement
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
-

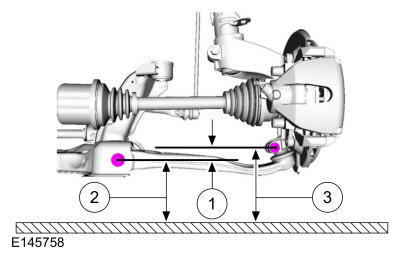

- Ride height = 3-2
- Measurement 2
- Measurement 3
-
NOTE: Lock the surface gauge in this position.

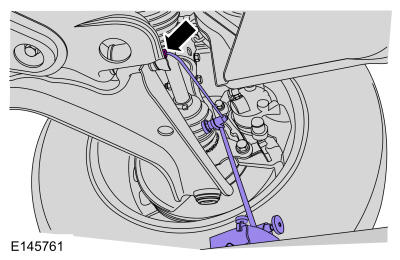

Position the surface gauge on the same flat, level surface, adjust the gauge arm until the scriber point is located in the center of the lower arm forward bolt. Use the General Equipment: Surface Gauge
- With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2). Use the General Equipment: Surface Gauge
-
NOTE: Lock the surface gauge in this position.

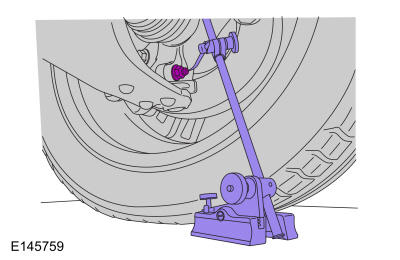

Position the surface gauge on the same flat, level surface, adjust the gauge arm until the scriber point is located in the center of the ball joint bolt.
- With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 3).
- Subtract measurement 2 from measurement 3 to obtain the front ride height.
Rear Ride Height Measurement
NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel. -

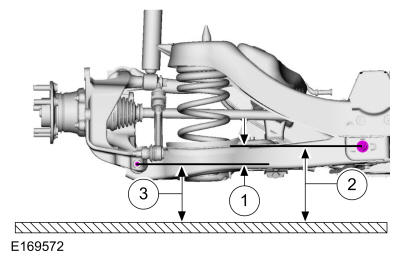

- Ride height = 2-3
- Measurement 2
- Measurement 3
- Measure the distance between the flat level surface and the center of the rear lower arm inboard bolt (Cam Adjuster) (measurement 2).
- Measure the distance between the flat level surface and the center of the rear lower arm outboard bolt (measurement 3).
- Subtract measurement 3 from measurement 2 to obtain the rear ride height. Refer to: Specifications .
