Front Camber and Caster Adjustment

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Adjustment

NOTE: Camber Adjustment

Using alignment equipment and the manufacturer's instructions, measure the camber settings.
Refer to: Cowl Panel .
Courtesy of FORD MOTOR COMPANY

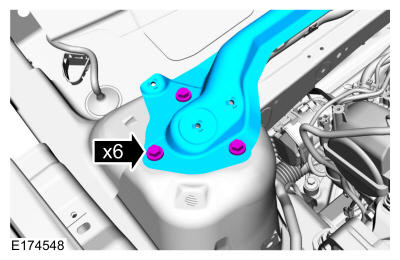

NOTE: The crossbrace must be removed to gain access to the strut rod nut.

On both sides.

Courtesy of FORD MOTOR COMPANY

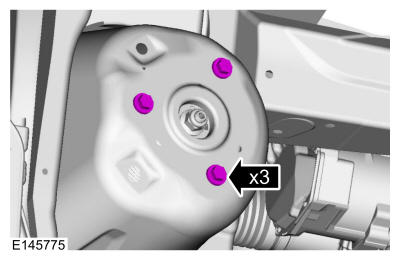

NOTE: The strut upper bolts must be temporarily installed prior to loosening the strut rod nut.

On both sides.

Courtesy of FORD MOTOR COMPANY

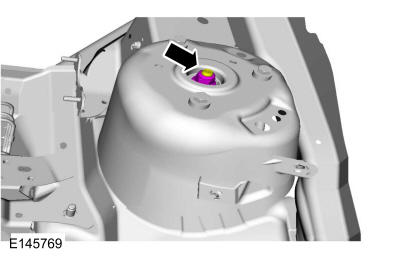

NOTE: By loosening the strut rod nut and either pushing the strut inboard or pulling it outboard the camber can be adjusted by approximately 0.25 degrees.
- To make a negative camber adjustment, loosen the strut rod nut and push the strut inboard.
- To make a positive camber adjustment, loosen the strut rod nut and pull the strut outboard.
  Torque: 41 lb.ft (55 Nm)
Courtesy of FORD MOTOR COMPANY
On both sides.

Courtesy of FORD MOTOR COMPANY
On both sides.
Torque:

1: 80 lb.in (9 Nm)

2: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

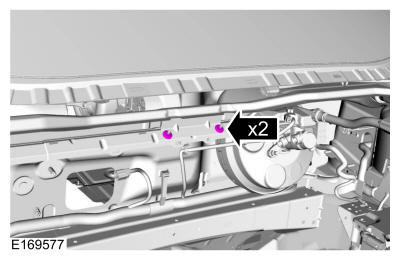

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Cowl Panel .

Adjustment

NOTE: Cross Camber Adjustment

Using alignment equipment and the manufacturer's instructions, measure the camber settings.
If equipped.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

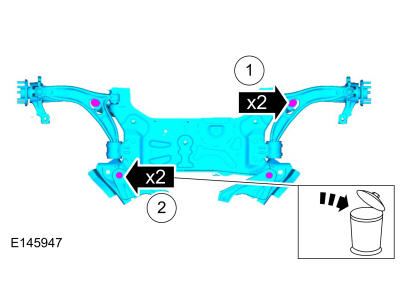

Loosen:1: 720-1080 °

Courtesy of FORD MOTOR COMPANY

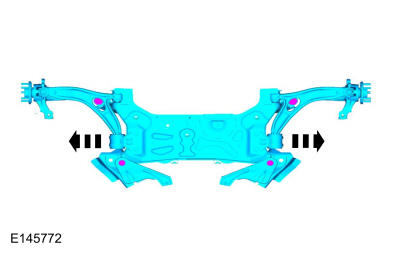

NOTE: Shifting the subframe towards the passenger side increases the driver side camber and decreases the passenger side camber. Shifting the subframe towards the driver side increases the passenger side camber and decreases the driver side camber.

Courtesy of FORD MOTOR COMPANY

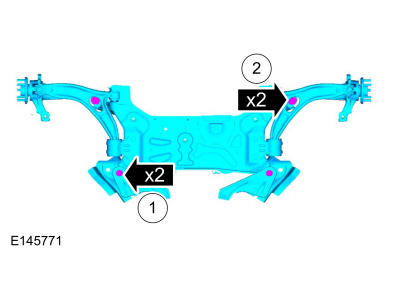

1. Torque:
  Stage 1: 103 lb.ft (140 Nm)

  Stage 2: 180 °
2. Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY
Refer to: Front Toe Adjustment .

Adjustment

NOTE: Cross Caster Adjustment

Using alignment equipment and the manufacturer's instructions, measure the caster settings.
If equipped.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Loosen:1: 720-1080 °

Courtesy of FORD MOTOR COMPANY

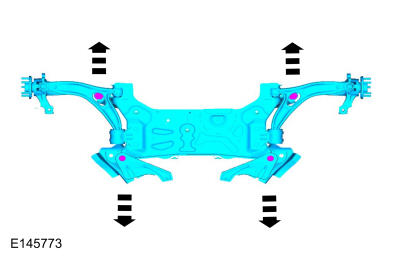

NOTE: Shifting the subframe forward increases the caster. Shifting the subframe rearward decreases the caster.

Courtesy of FORD MOTOR COMPANY
1. Torque:
  Stage 1: 103 lb.ft (140 Nm)

  Stage 2: 180 °
2. Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY
Refer to: Front Toe Adjustment .
