Rear Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the liftgate moulding. Refer to: Liftgate Moulding .
-

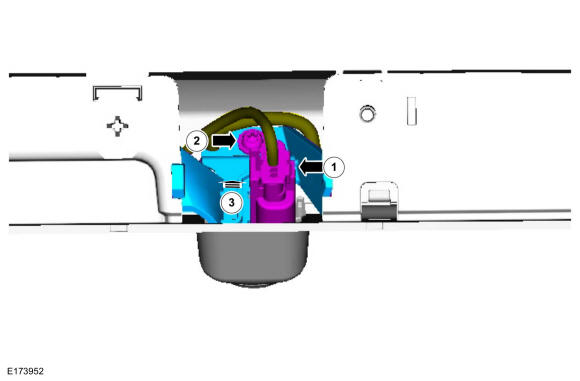

- Disconnect the electrical connector.
- Remove the screw.
Torque: 11 lb.in (1.2 Nm)
- Remove the camera retaining bracket.
- Remove the rear view camera.
