Catalyst Monitor Sensor: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

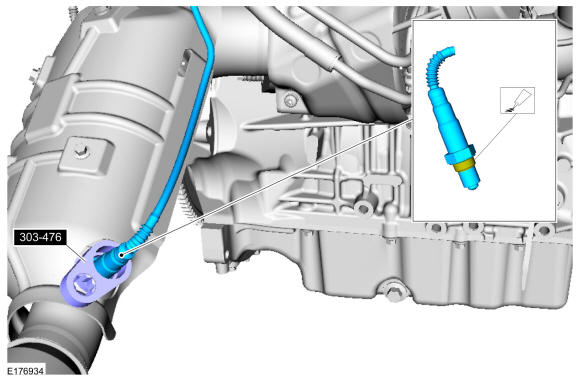

  1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the chart below. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft ® High Temperature Nickel Anti-Seize Lubricant / XL-2

    G00468730Courtesy of FORD MOTOR COMPANY

    Torque: 35 lb.ft (48 Nm)

    GFD228675Courtesy of FORD MOTOR COMPANY
  2. Refer to: Rear Driveshaft .
    GFD228111Courtesy of FORD MOTOR COMPANY
    GFD228673Courtesy of FORD MOTOR COMPANY
  3. Refer to: Air Cleaner Outlet Pipe .
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
GFD227516Courtesy of FORD MOTOR COMPANY
