Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. GFD228111Courtesy of FORD MOTOR COMPANY

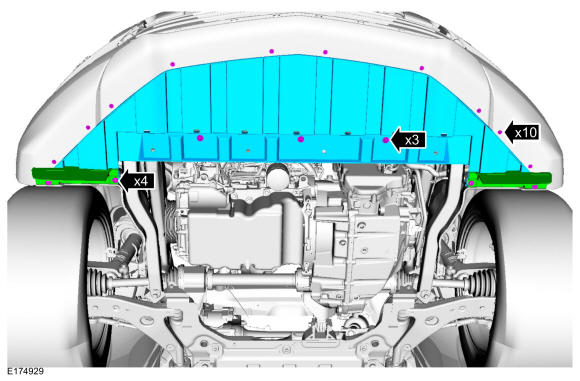

  3. GFD228699Courtesy of FORD MOTOR COMPANY
  4. GFD228374Courtesy of FORD MOTOR COMPANY
  5. GFD228375Courtesy of FORD MOTOR COMPANY

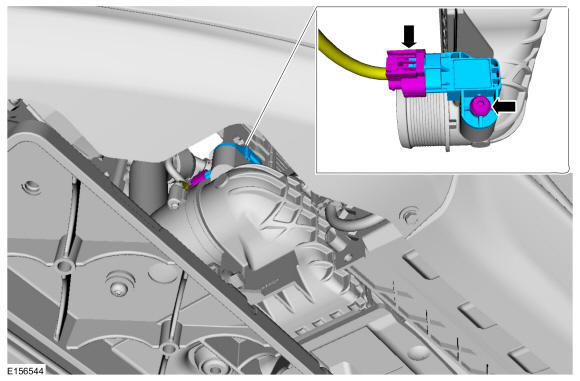

  6. Torque: 27 lb.in (3 Nm)
GFD228700Courtesy of FORD MOTOR COMPANY
