Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

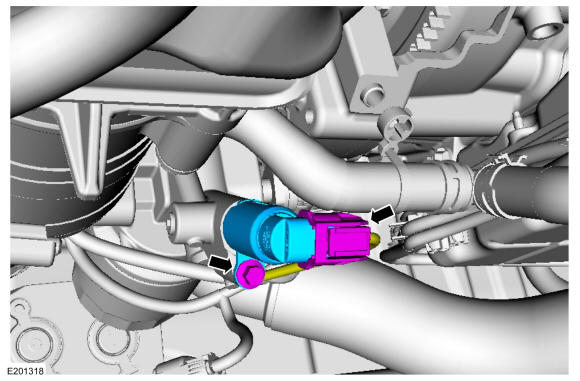

  1. Disconnect the electrical connector, remove the bolt and the oil pressure control solenoid.

    Torque: 97 lb.in (11 Nm)

GFD228694Courtesy of FORD MOTOR COMPANY
