Fuel Pressure Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
  2. Refer to: Fuel System Pressure Release .

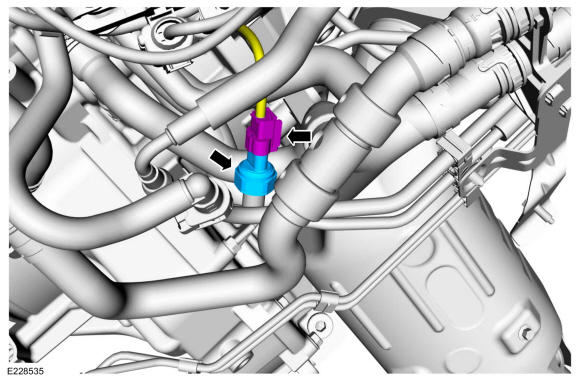

  3. Disconnect the fuel pressure sensor electrical connector and remove the fuel pressure sensor.

    Torque: 22 lb.ft (30 Nm)

GFD228684Courtesy of FORD MOTOR COMPANY
