Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

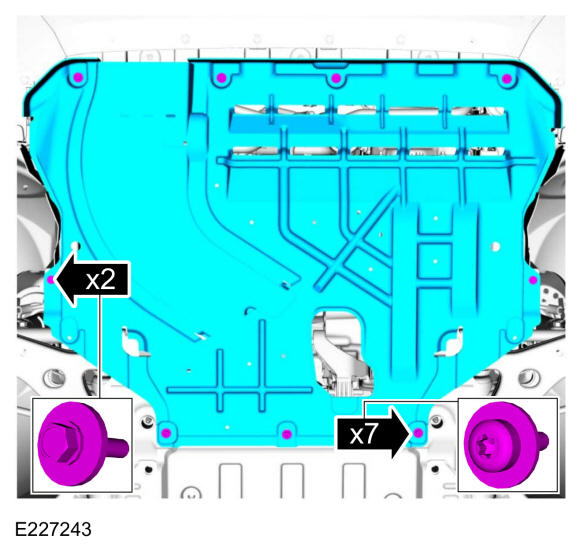

Remove retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

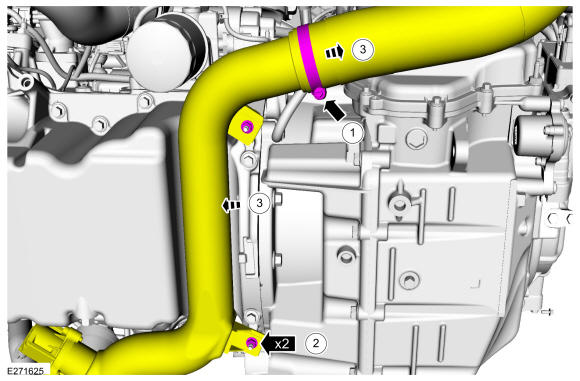

Separate and position aside the CAC intake pipes.
- Loosen the clamp.
  Torque: 44 lb.in (5 Nm)
- Remove the nuts from the stud bolts.
  Torque: 97 lb.in (11 Nm)
- Separate and position aside the CAC intake pipes.
Courtesy of FORD MOTOR COMPANY

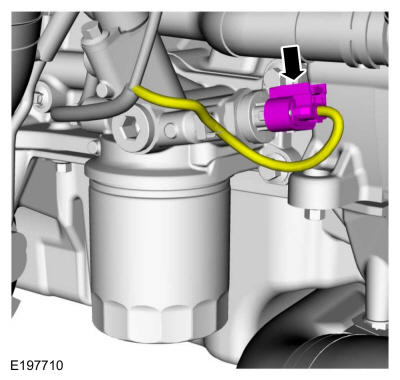

Disconnect the oil pressure sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

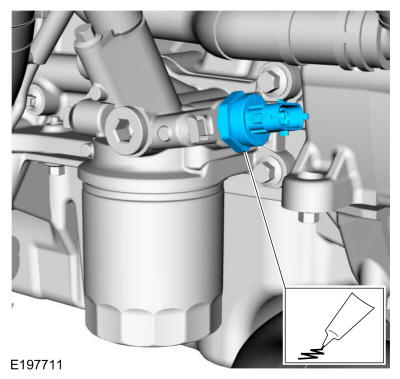

Remove the oil pressure sensor.
Torque:

:Stage 1: 133 lb.in (15 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
