Catalyst Monitor Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
    2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

    GFD227498Courtesy of FORD MOTOR COMPANY
  3. Refer to: Air Cleaner Outlet Pipe .

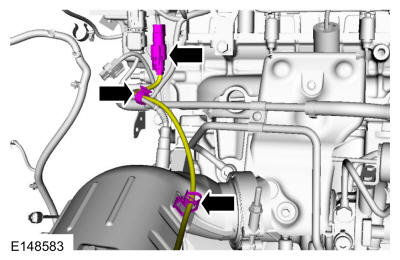

  4. GFD228673Courtesy of FORD MOTOR COMPANY

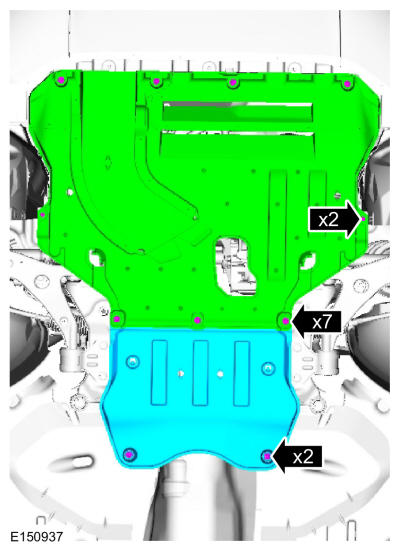

  5. GFD228111Courtesy of FORD MOTOR COMPANY
  6. Refer to: Rear Driveshaft .

    All vehicles

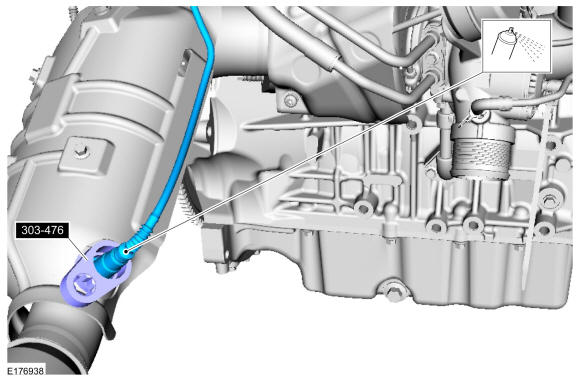

  7. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft ® Penetrating and Lock Lubricant / XL-1

GFD228674Courtesy of FORD MOTOR COMPANY
