Steering Gear: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front subframe. Refer to: Front Subframe .
  2. Remove the steering gear boot as shown.
    GFD227345Courtesy of FORD MOTOR COMPANY

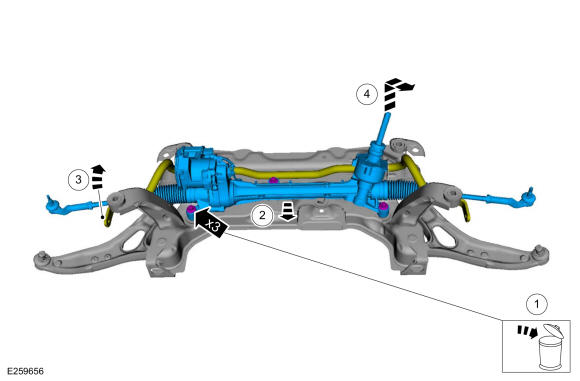

    1. Remove and discard the steering gear bolts.
    2. Position the steering gear forward.
    3. Rotate the front stabilizer bar upward.
    4. Remove the steering gear.
GFD227346Courtesy of FORD MOTOR COMPANY
