Front Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

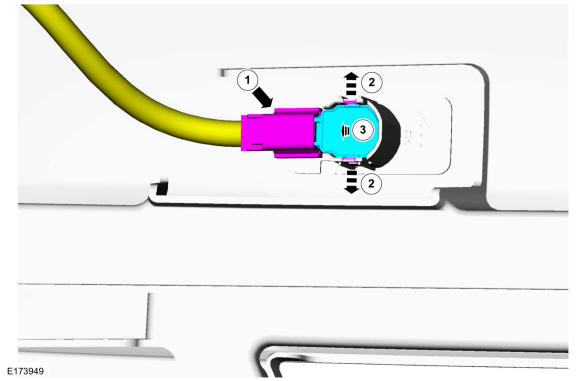

NOTE: RH outer shown, all others similar.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
    1. Disconnect the electrical connector.
    2. Release and hold the 2 tabs.
    3. Remove the front parking aid sensor.
GFD229738Courtesy of FORD MOTOR COMPANY
