Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fender moulding. Refer to: Front Fender Moulding .

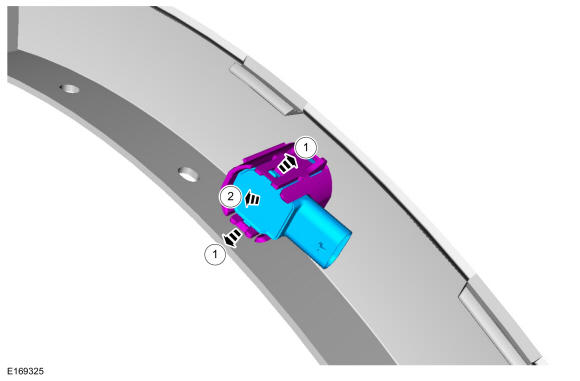

    1. Release and hold the tabs.
    2. Remove the active park assist sensor.
GFD229745Courtesy of FORD MOTOR COMPANY
