Azimuth System Check

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

  1. Turn the ignition ON, engine OFF.

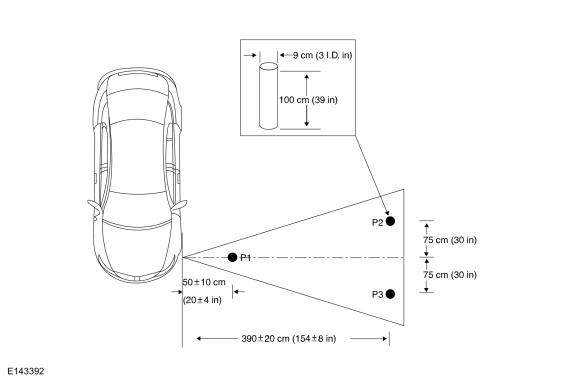

    GFD229744Courtesy of FORD MOTOR COMPANY
  2. Set the parking brake on.
  3. Place the gearshift in DRIVE (D).
  4. Verify the parking aid system detects the specified object when placed within the 3 specified locations (P1, P2, P3) and record the distances.
  5. Confirm the recorded distances are within the specification ranges.
  6. If the active park assist system does not detect the object, Refer to: Parking Aid .
