Removal And Installation: Radiator: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the cooling module. Refer to: Cooling Module .

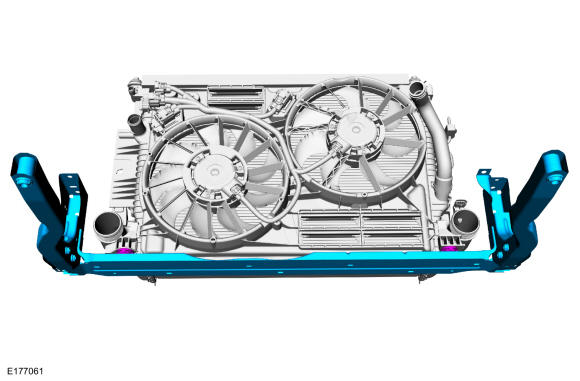

- Remove the lower radiator support.

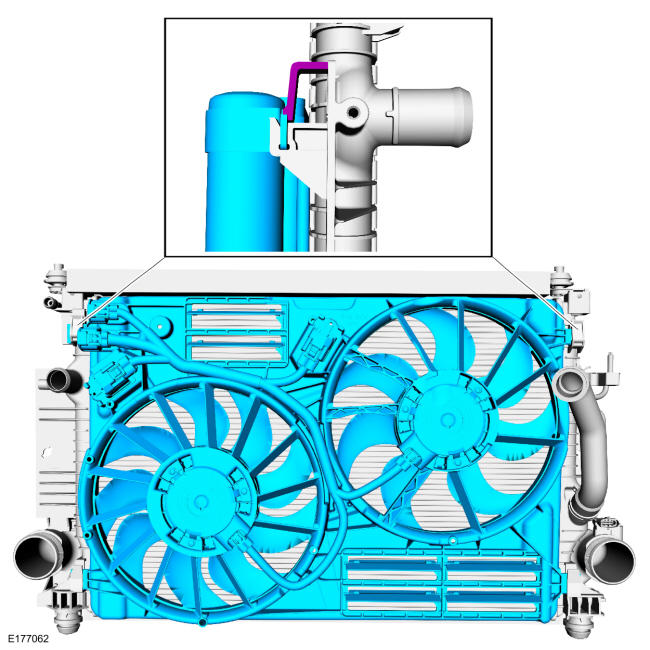

- Release the tabs and remove the cooling fan motor and shroud.

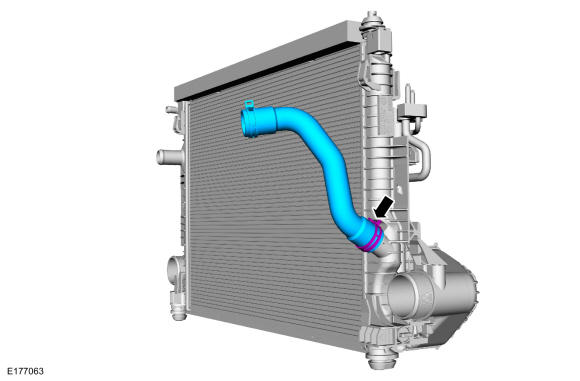

- Release the clamp and remove the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

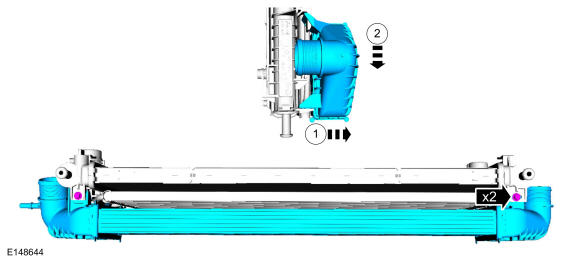

- Remove the screws and the CAC.
Torque: 44 lb.in (5 Nm)

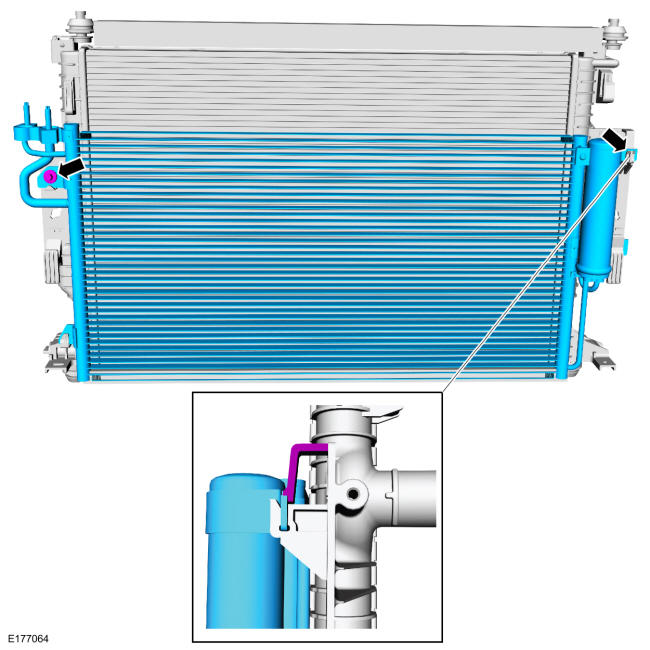

- Remove the screw, release the tabs and remove the A/C condenser assembly.
Torque: 44 lb.in (5 Nm)
