Transmission Fluid Heater Coolant Control Valve: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

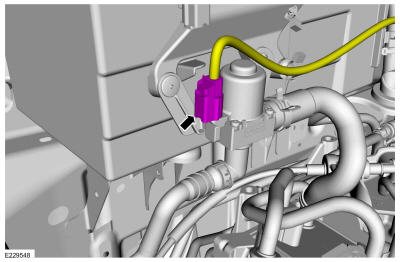

- Disconnect the coolant control valve electrical connector.

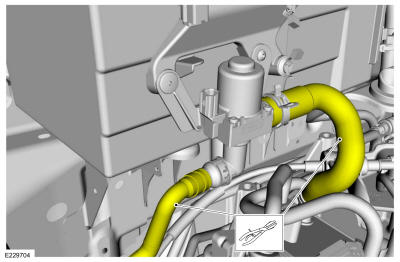

- Clamp off the coolant control valve hoses. Use the General Equipment: Hose Clamp(s)

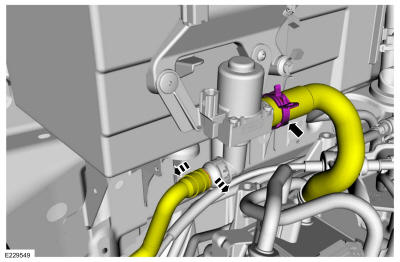

- Release the clamp and the clip. Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

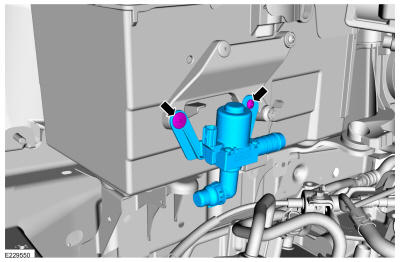

- Remove the retainers and the transmission fluid heater coolant control valve.
