Coolant Pump: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding . Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

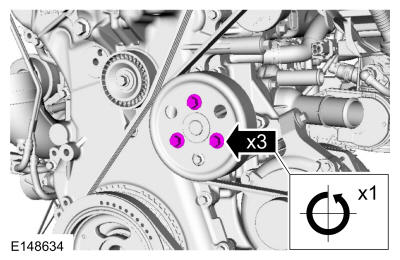

  2. Loosen the coolant pump pulley bolts.
    GFD228382Courtesy of FORD MOTOR COMPANY

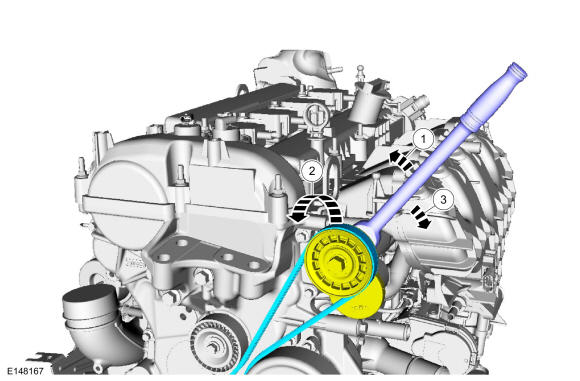

  3. NOTE: Make sure the accessory drive belt is positioned so coolant can not contaminate the belt.

    Remove the accessory drive belt.

    GFD228383Courtesy of FORD MOTOR COMPANY
  4. NOTE: Cover the A/C belt to prevent coolant contamination of the belt.

    Completely cover the A/C belt with waterproof plastic.

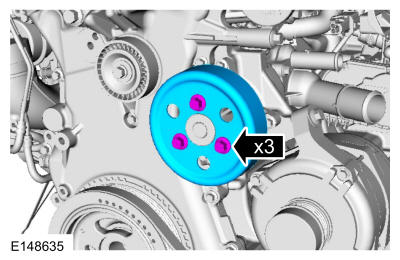

  5. Remove the bolts and the coolant pump pulley.
    GFD228384Courtesy of FORD MOTOR COMPANY

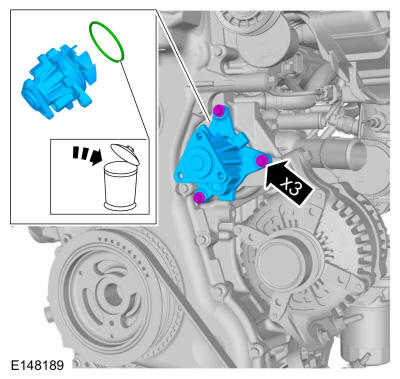

  6. Remove the bolts and the coolant pump. Discard the O-ring seal.
GFD228385Courtesy of FORD MOTOR COMPANY
