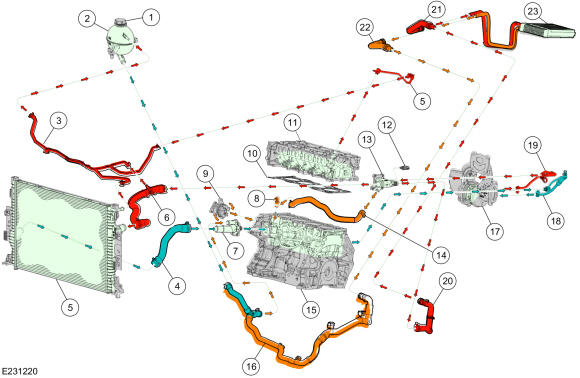

Engine Cooling System Exploded View Without Start/Stop
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Degas bottle-to-radiator air aspirator hose assembly |
| 4 | Lower radiator hose |
| 5 | Radiator |
| 6 | Upper radiator hose |
| 7 | Thermostat housing |
| 8 | Coolant bypass hose connector |
| 9 | Coolant pump |
| 10 | Cylinder head gasket |
| 11 | Cylinder head |
| 12 | ECT sensor |
| 13 | Coolant outlet connector adapter assembly |
| 14 | Coolant bypass hose |
| 15 | Engine block |
| 16 | Degas bottle-to-thermostat housing hose assembly |
| 17 | Turbocharger |
| 18 | Turbocharger inlet tube |
| 19 | Turbocharger outlet tube |
| 20 | Heater core inlet hose |
| 21 | Heater hose assembly |
| 22 | Heater core outlet hose |
| 23 | Heater core |
