Rear Door: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

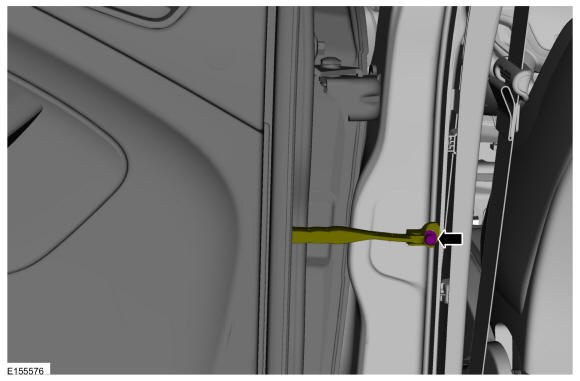

- Remove the check arm bolt.
Torque: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|

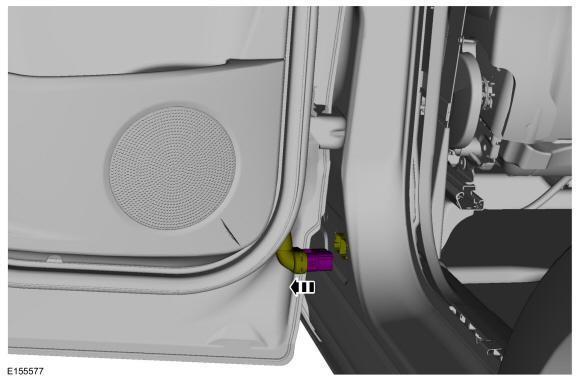

- Disconnect the rear door electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

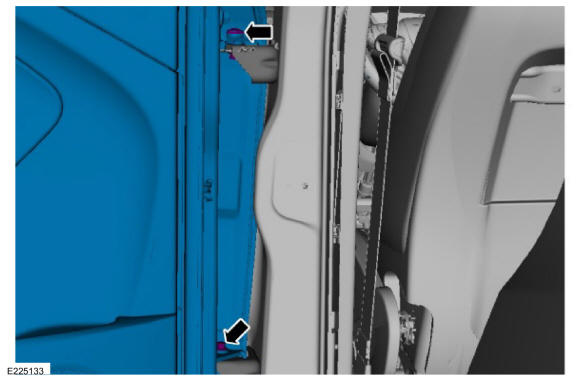

- Attach the door lift. Remove the bolts and the door. Use the General Equipment: Door Lift
Torque: 22 lb.ft (30 Nm)
 Courtesy of FORD MOTOR COMPANY
|
