Power Liftgate Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .

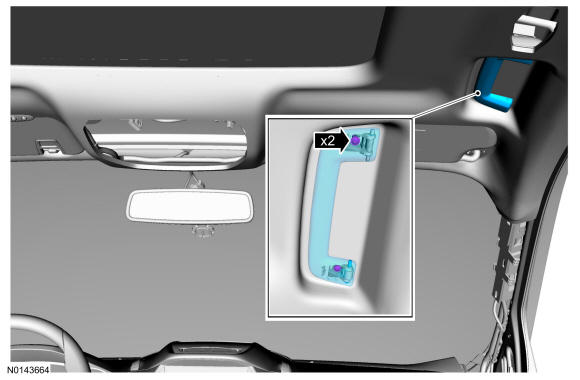

  2. NOTE: RH front shown, all others similar.

    Remove the rear grab handles.

    GFD229820Courtesy of FORD MOTOR COMPANY

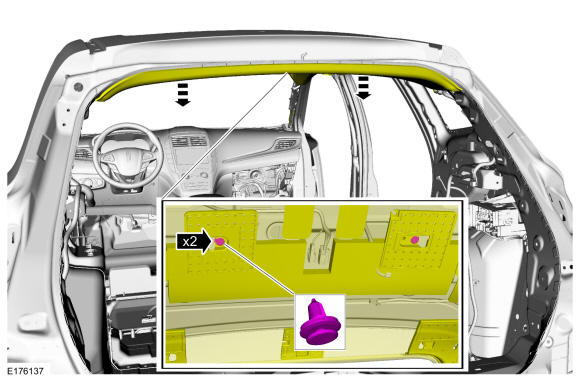

  3. Release the rear 2-way locators at the rear of the headliner.
    GFD229821Courtesy of FORD MOTOR COMPANY

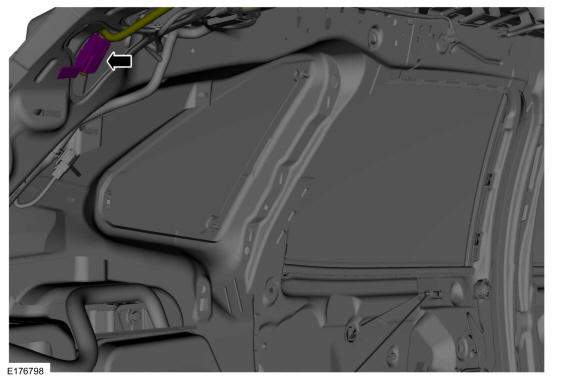

  4. Disconnect the power liftgate motor electrical connector.
    GFD230038Courtesy of FORD MOTOR COMPANY

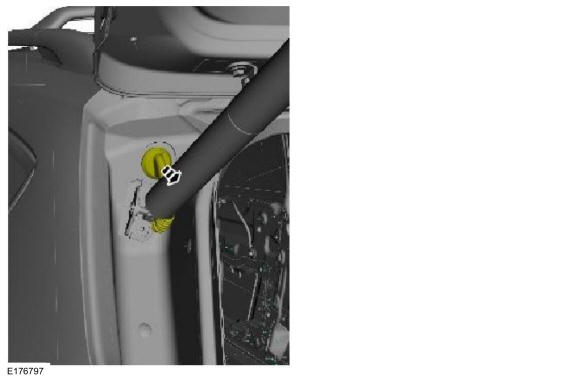

  5. Route the power liftgate motor electrical connector and harness through the body.
    GFD230039Courtesy of FORD MOTOR COMPANY
  6. NOTE: Support the liftgate before removing the power liftgate motor. Failure to follow this direction may result in damage to the components.

    Remove the 2 clips and remove the power liftgate motor.

GFD230040Courtesy of FORD MOTOR COMPANY
