Removal And Installation: Liftgate: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

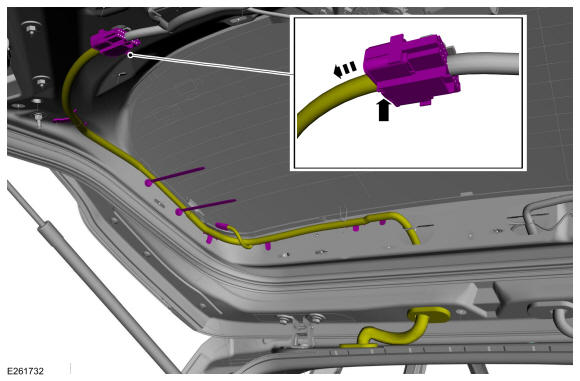

- Disconnect the right side wiring harness and route through the liftgate.

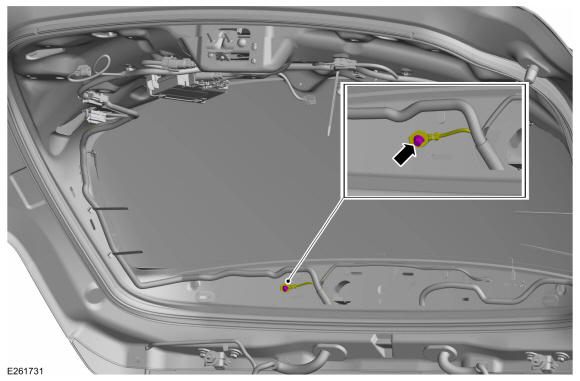

- Remove the ground wire retainer.
Torque: 106 lb.in (12 Nm)

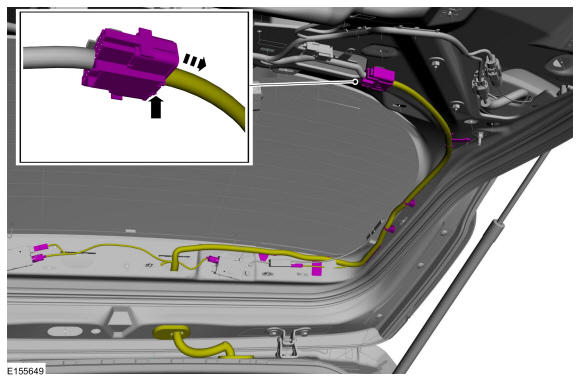

- Disconnect the left side wiring harness and feed through the liftgate.

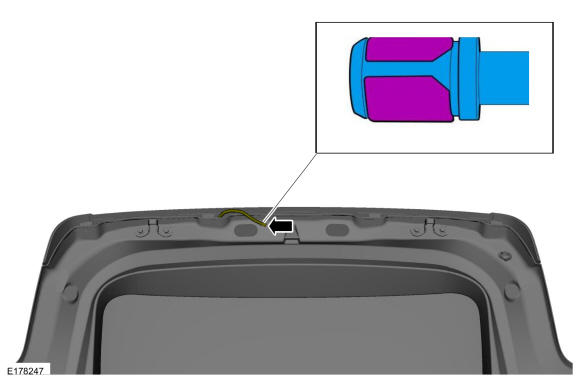

- Disconnect the rear washer hose. Refer to: Washer Hose Coupling
.

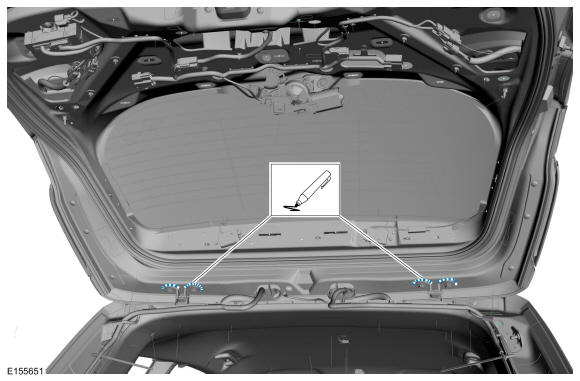

- Mark the location of the liftgate hinge bolts.
-
NOTE: This step requires the aid of another technician.

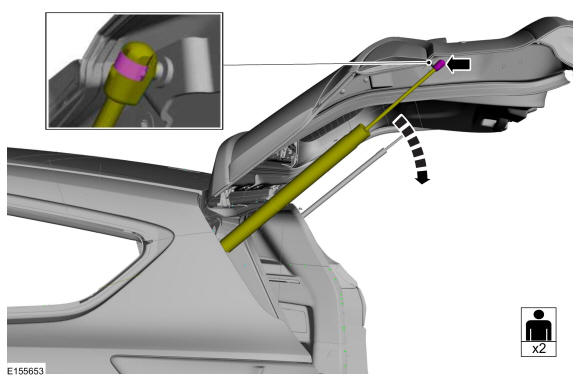

On both sides. Remove the clips holding the liftgate struts or the power liftgate motor and position aside.
-
NOTE: This step requires the aid of another technician.

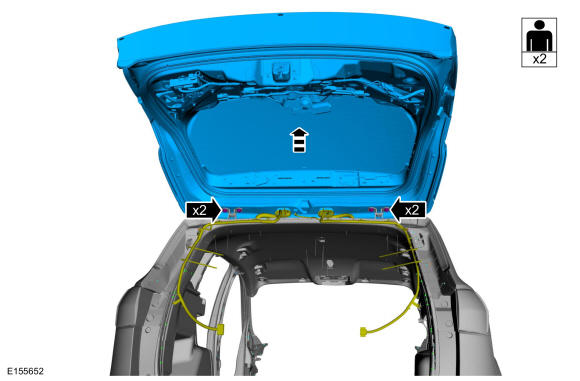

Remove the liftgate bolts and remove the liftgate from the vehicle.
Torque: 22 lb.ft (30 Nm)
