Hands-Free Liftgate Actuation Upper Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

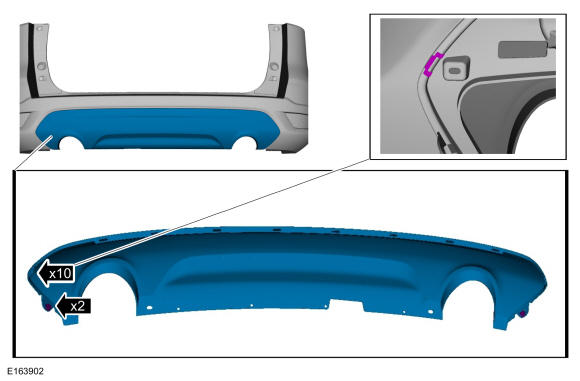

  1. Remove the center section of the rear bumper cover.
    GFD230028Courtesy of FORD MOTOR COMPANY

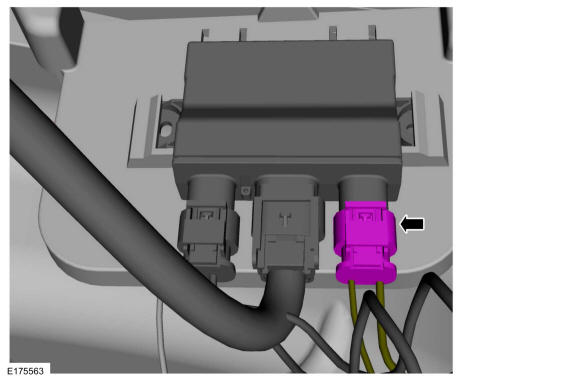

  2. Disconnect the hands-free liftgate actuation upper sensor electrical connector.
    GFD230029Courtesy of FORD MOTOR COMPANY
  3. Remove the hands-free liftgate actuation upper sensor.
GFD230030Courtesy of FORD MOTOR COMPANY
