Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

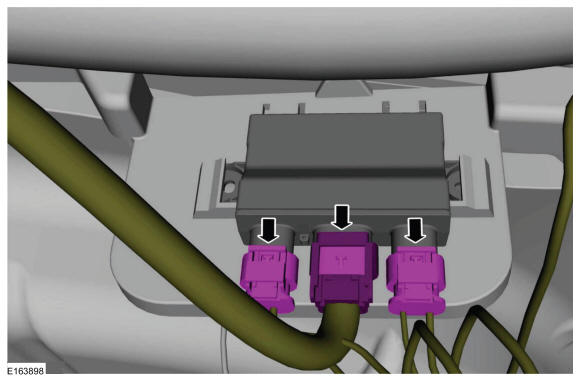

  1. Disconnect the hands-free liftgate actuation module electrical connectors.
    GFD230026Courtesy of FORD MOTOR COMPANY

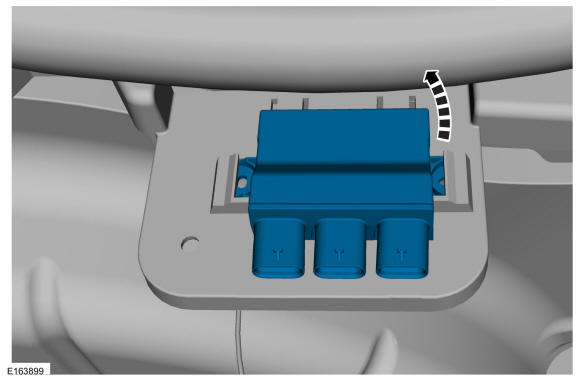

  2. Remove the hands-free liftgate actuation module.
GFD230027Courtesy of FORD MOTOR COMPANY
