Hands-Free Liftgate Actuation Lower Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

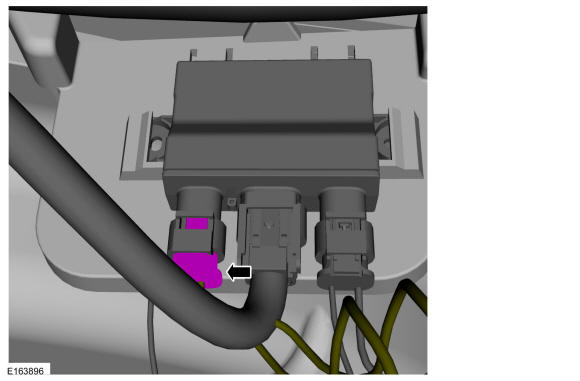

  1. Disconnect the hands-free liftgate actuation lower sensor electrical connector.
    GFD230024Courtesy of FORD MOTOR COMPANY

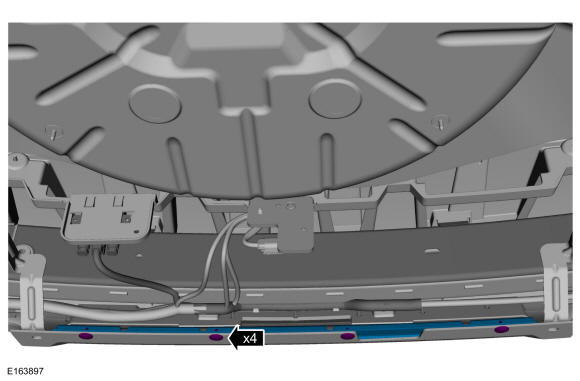

  2. Remove the hands-free liftgate actuation lower sensor.
GFD230025Courtesy of FORD MOTOR COMPANY
