Fuel Filler Door: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

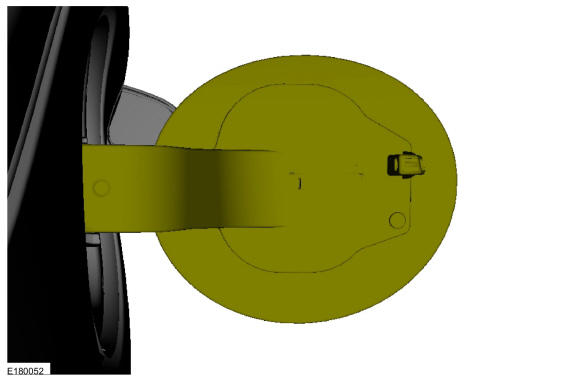

  1. Open the fuel filler door.
    GFD230042Courtesy of FORD MOTOR COMPANY

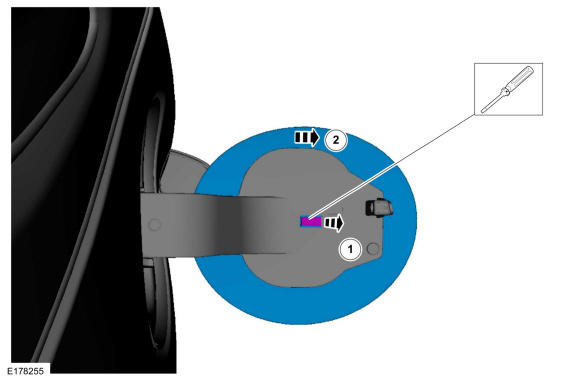

  2. Using a screwdriver pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge.
GFD230043Courtesy of FORD MOTOR COMPANY
