Fuel Filler Door Spring: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.

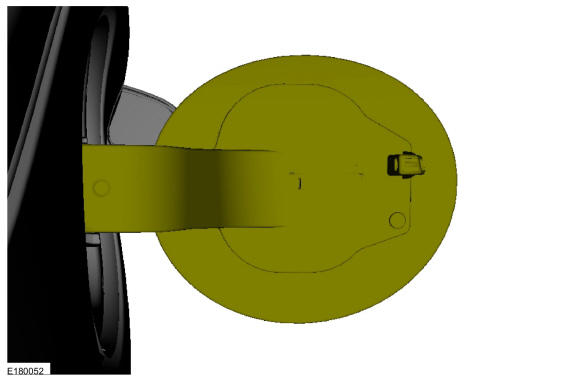

    GFD230048Courtesy of FORD MOTOR COMPANY
  2. Using a screwdriver, press the tab to release the fuel filler door spring from the fuel filler door assembly.

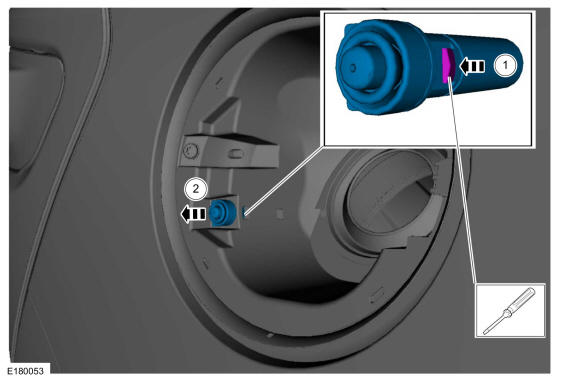

GFD230049Courtesy of FORD MOTOR COMPANY
