Fuel Filler Door Assembly: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

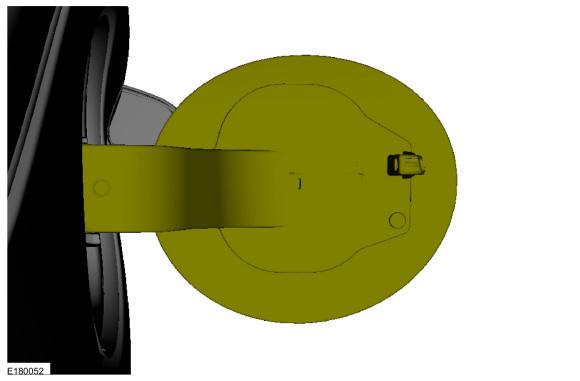

- Open the fuel filler door.
- Remove the fuel tank filler pipe. Refer to: Fuel Tank Filler Pipe 2.3L EcoBoost (201kW/273PS) . Refer to: Fuel Tank Filler Pipe 2.0L EcoBoost (177kW/240PS) - MI4 .

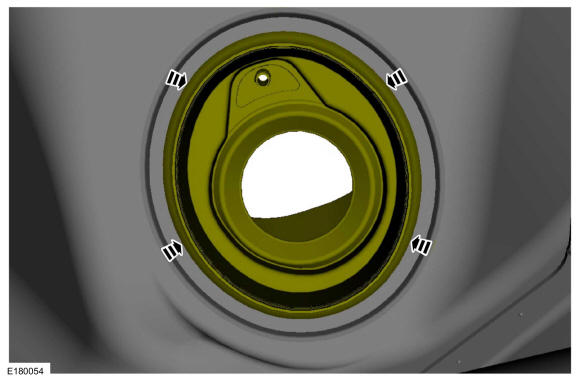

- Unseat the fuel filler door assembly boot from inside the wheel opening.
-
NOTE: Clearance is limited. When all four clips release you can rotate the housing out of the vehicle.

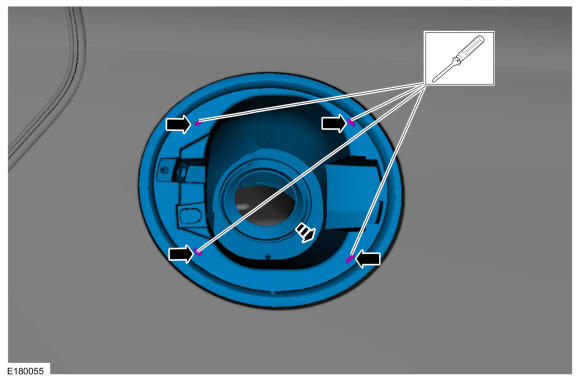

Using a screwdriver punch the 4 holes indicated area. Insert the screwdriver and release the clips while pulling the housing away from the vehicle.
-
NOTE: This step is only necessary when installing a new component.

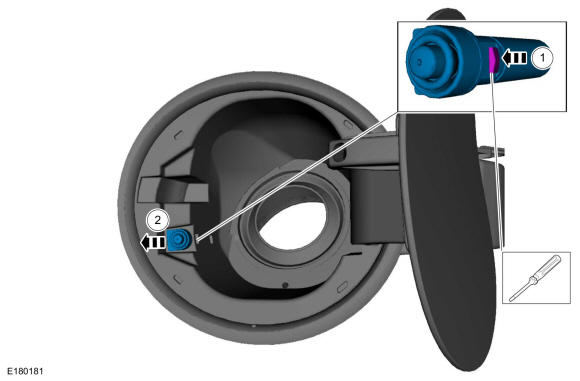

Using a screwdriver, press the tab to release the fuel filler door spring from the fuel filler door assembly.
