Rear Door Alignment
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Inspection
- Check rear door to body dimensions. Refer to: Vehicle Specific Body Construction .
Adjustment
NOTE:
LH shown, RH similar.
All alignments

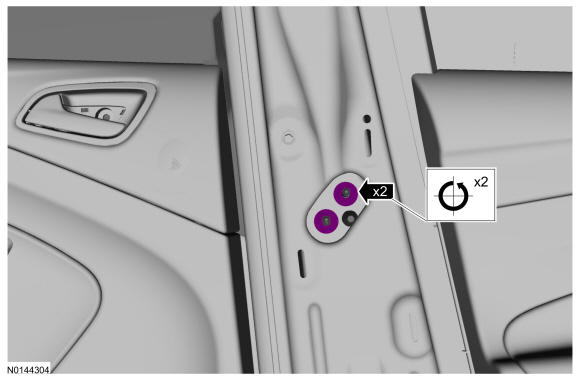

- Remove the bolts and the striker assembly.

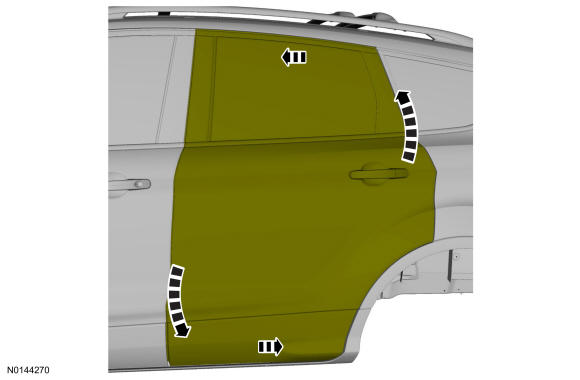

Rear door in and out, up and down alignment

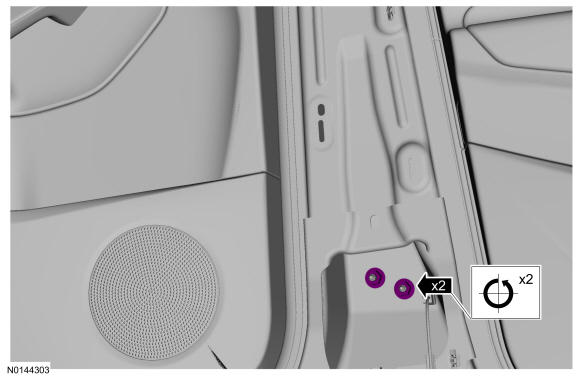

- Loosen the bolts to permit movement of the door.
Torque: 35 lb.ft (47 Nm)
- Adjust door to specification. Refer to: Vehicle Specific Body Construction
.
Rear door fore, aft and tilt alignment

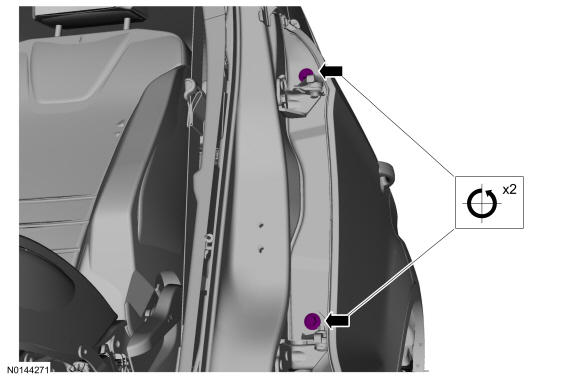

- Loosen the bolt to permit movement of the door.
Torque: 22 lb.ft (30 Nm)
- Refer to: Seatbelt Retractor and Pretensioner .

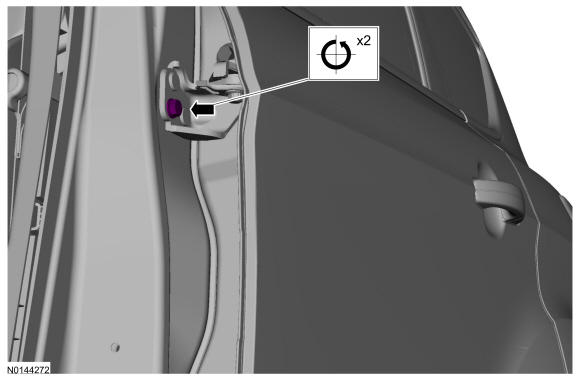

- Loosen the nuts to permit movement of the door.
Torque: 22 lb.ft (30 Nm)
- Loosen the nuts to permit movement of the door.
- Adjust door to specification. Refer to: Vehicle Specific Body Construction
.
All alignments

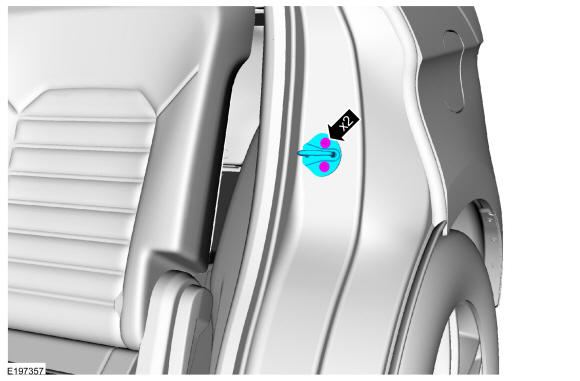

- Install the striker assembly.
Torque: 177 lb.in (20 Nm)
- Check body to rear door dimensions. Refer to: Vehicle Specific Body Construction .
- Install the removed components.
