Liftgate Alignment

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Inspection

  1. Check liftgate to body dimensions. Refer to: Body and Frame .
    1. If dimensions are ok, liftgate alignment is not necessary. Continue to Striker Adjustment.
    2. If liftgate alignment is necessary continue to

      Adjustment  .

Adjustment

Liftgate left and right, up and down alignment

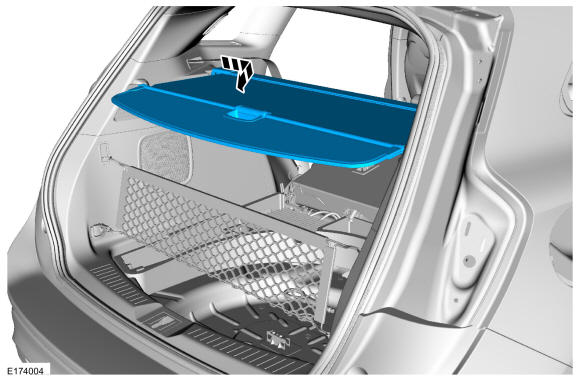

  1. Remove the luggage cover.
    GFD230006Courtesy of FORD MOTOR COMPANY
  2. Remove the spare tire cover.
    GFD229863Courtesy of FORD MOTOR COMPANY
    1. If equipped, disconnect the DSP electrical connectors.

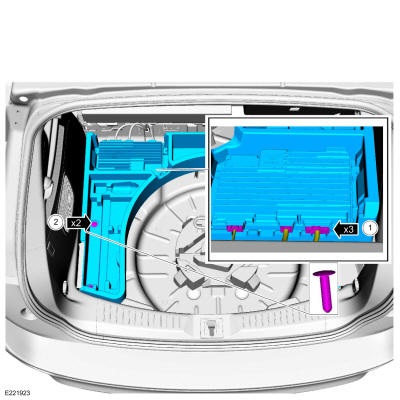

    2. Remove the pin-type retainers and the LH utility bin.
    GFD230007Courtesy of FORD MOTOR COMPANY
  4. Remove the liftgate opening trim panel.

    1. Remove the screws.
    2. Remove the pin-type retainers.
    3. Release the clips and remove the liftgate opening trim panel.

    GFD230008Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and liftgate striker.
    GFD230009Courtesy of FORD MOTOR COMPANY
  6. Loosen the bolts.

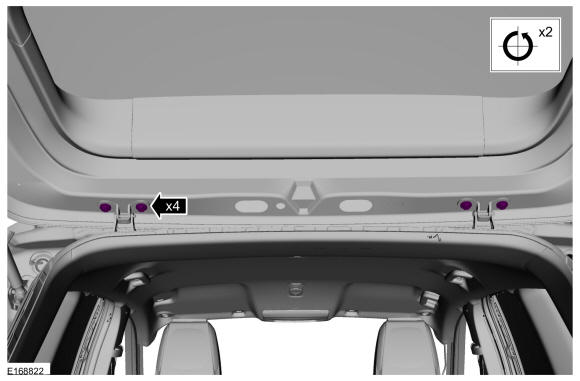

    GFD230010Courtesy of FORD MOTOR COMPANY

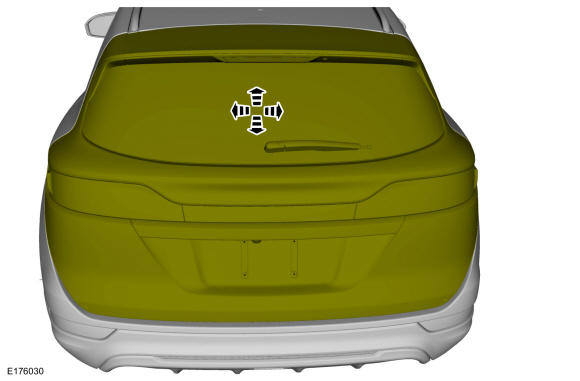

  7. Adjust the liftgate up/down and left/right.
    GFD230011Courtesy of FORD MOTOR COMPANY
  8. Tighten the bolts.

    Torque: 22 lb.ft (30 Nm)

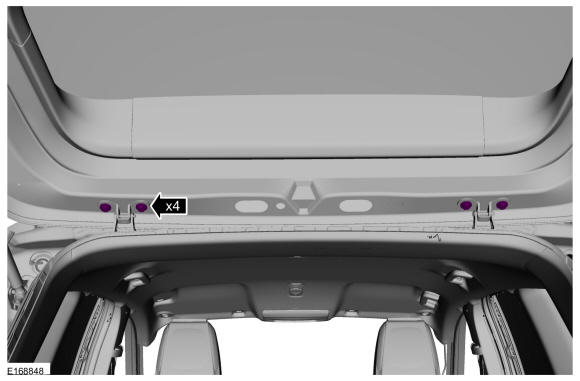

    GFD230012Courtesy of FORD MOTOR COMPANY
  9. Install the bolts and the liftgate striker.
    GFD230009Courtesy of FORD MOTOR COMPANY
  10. Adjust the liftgate striker.
  11. Install the removed components.

    Liftgate in and out alignment

  12. Remove the luggage cover.
    GFD230006Courtesy of FORD MOTOR COMPANY
  13. Remove the spare tire cover.
    GFD229863Courtesy of FORD MOTOR COMPANY
    1. If equipped, disconnect the DSP electrical connectors.
    2. Remove the pin-type retainers and the LH utility bin.
    GFD230007Courtesy of FORD MOTOR COMPANY
  15. Remove the liftgate opening trim panel.

    1. Remove the screws.
    2. Remove the pin-type retainers.
    3. Release the clips and remove the liftgate opening trim panel.

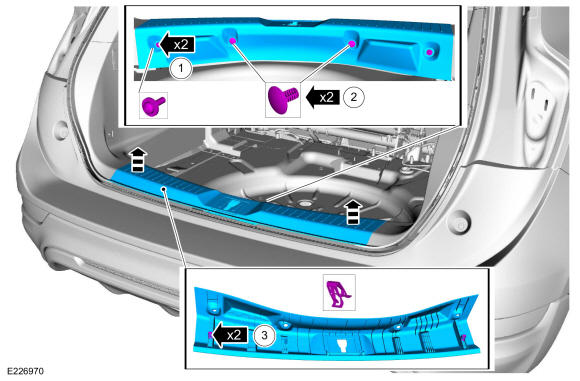

    GFD230008Courtesy of FORD MOTOR COMPANY
  16. Remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
  17. NOTE: RH front shown, all others similar.

    Remove the rear grab handles.

    GFD229820Courtesy of FORD MOTOR COMPANY
  18. Remove the pin-type retainers and lower the rear of the headliner.
    GFD229821Courtesy of FORD MOTOR COMPANY
  19. Loosen the liftgate hinge nuts.

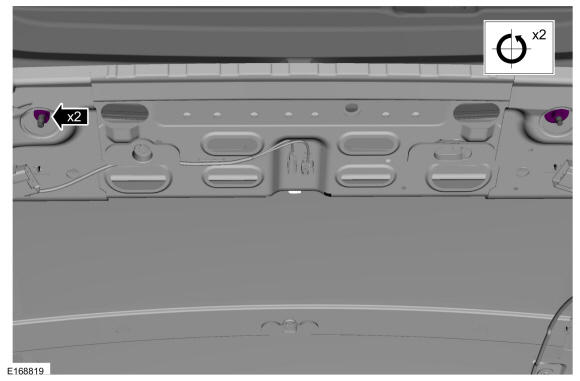

    GFD230013Courtesy of FORD MOTOR COMPANY
  20. Remove the bolts and the liftgate striker.

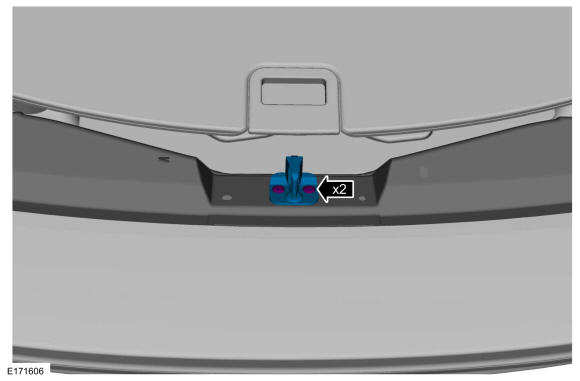

    GFD230009Courtesy of FORD MOTOR COMPANY
  21. Adjust the liftgate stops in and out on both sides.

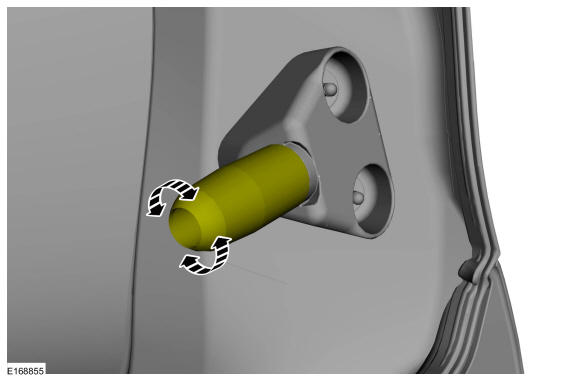

    GFD230014Courtesy of FORD MOTOR COMPANY
  22. Adjust the liftgate in and out.

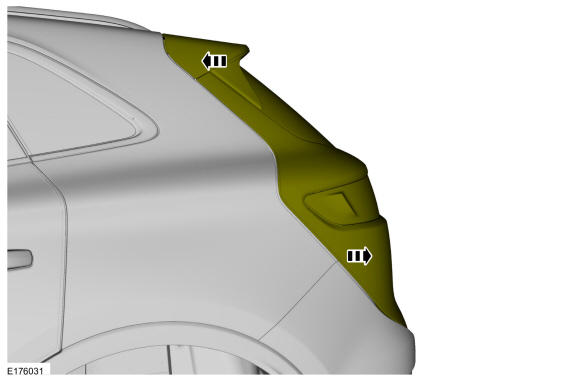

    GFD230015Courtesy of FORD MOTOR COMPANY
  23. Tighten the liftgate hinge nuts.

    Torque: 41 lb.ft (55 Nm)

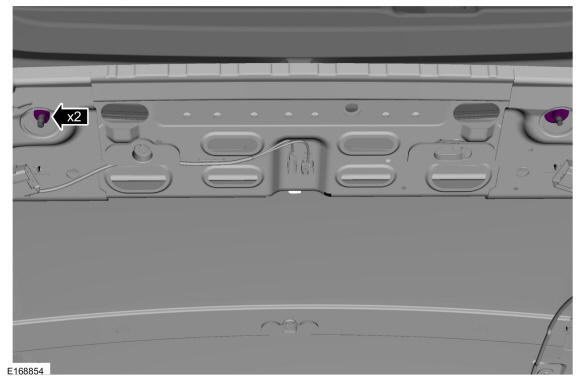

    GFD230016Courtesy of FORD MOTOR COMPANY
  24. Install the bolts and the liftgate striker.
    GFD230009Courtesy of FORD MOTOR COMPANY
  25. Adjust the liftgate striker.
  26. Install the removed components.

    Power Liftgate

  27. Perform the power liftgate initialization. Refer to: Power Liftgate Initialization .
