Front Seat: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
- Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .

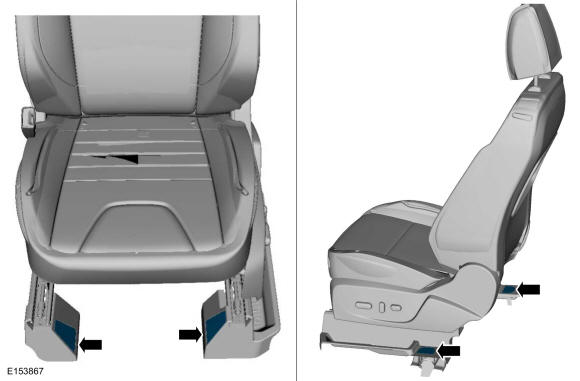

- Remove the 4 front seat shield bolt caps.

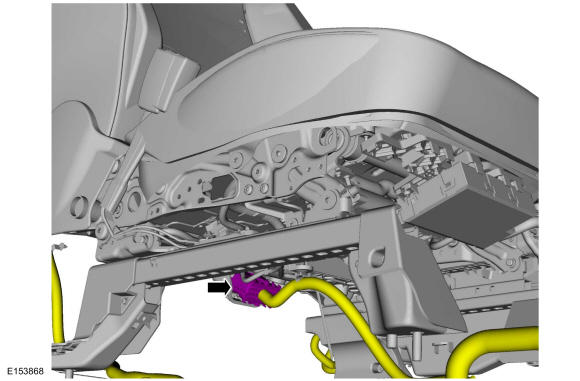

- Disconnect the front seat electrical connector(s) and release the retainer(s) and position the wire harness aside.
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

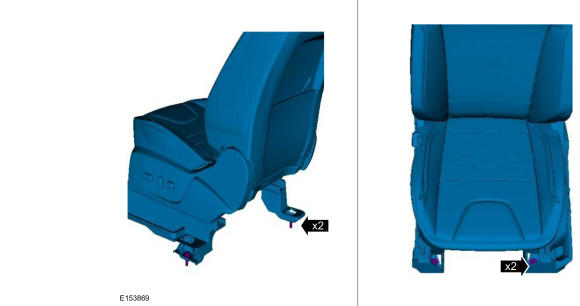

Remove the 4 bolts and the front seat.
