Front Seat Track Motor: Installation

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use the bolts from the old front seat track motor.

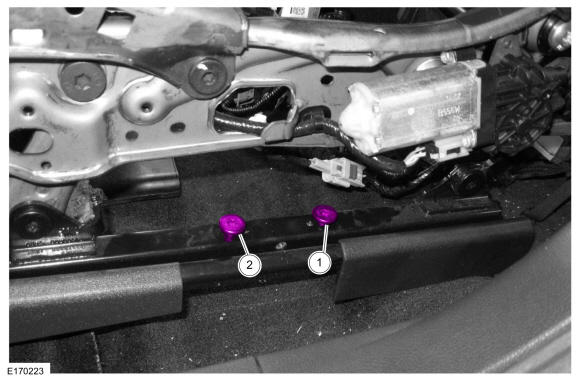

Install the 4 front seat track motor bolts.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops, otherwise a new seat track must be installed.

NOTE: Be sure to drive the seat track evenly or the track will bind during movement.

NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position seat track.

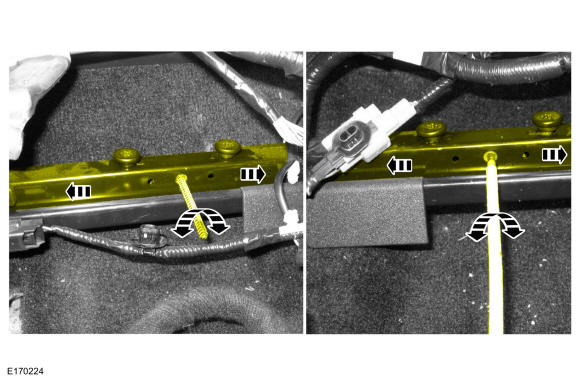

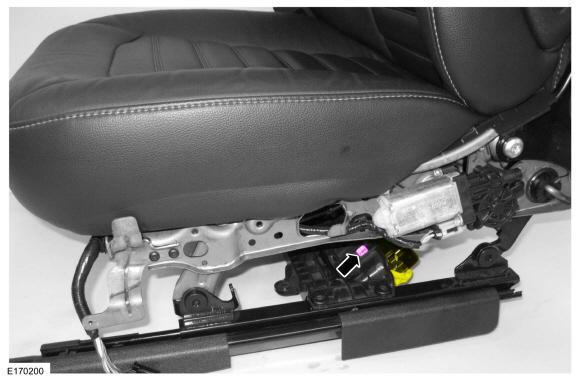

Insert the original seat track motor drive cables and drive the gearbox and front seat track uniformly until the rear edge of the upper and lower seat tracks are flush. Use the General Equipment: Electric Drill

Courtesy of FORD MOTOR COMPANY

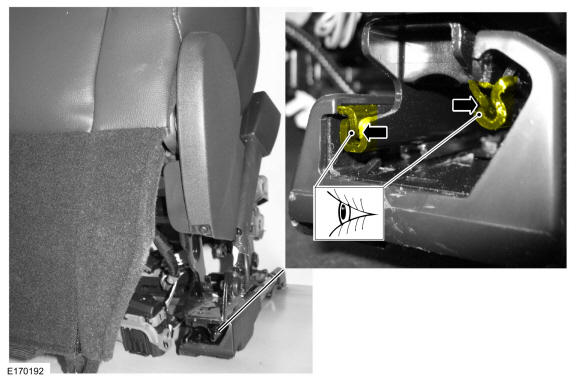

On both sides of the front seat track, check that the rear edges of the upper and lower front seat track rails align with each other.

Courtesy of FORD MOTOR COMPANY

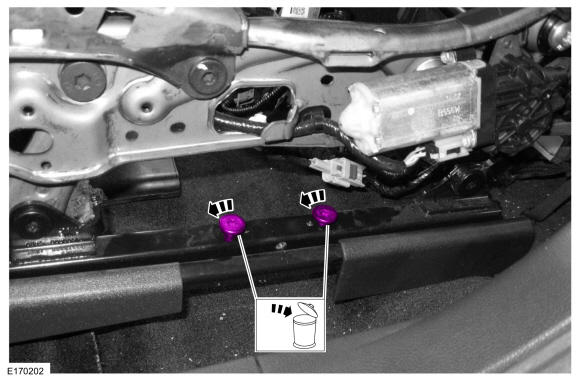

Remove and discard the 4 front seat track motor bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Install a new seat track if the block is not in place.

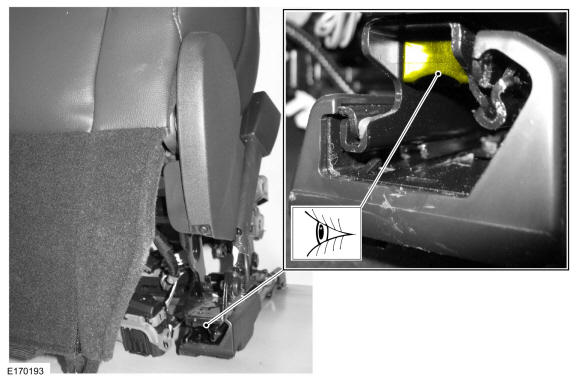

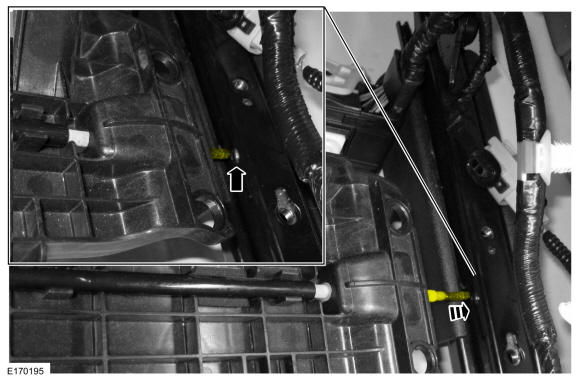

Verify that the block is in place at the rear of the inboard seat track.

Courtesy of FORD MOTOR COMPANY

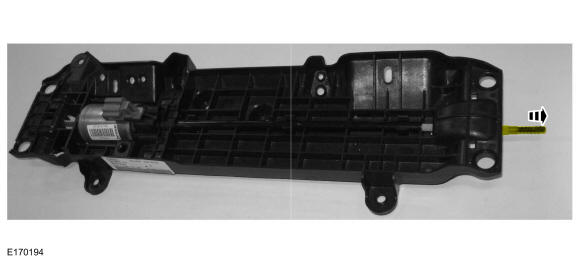

Pull the long drive cable on the new motor assembly out of the sheathing, as shown, to aid installation.

Courtesy of FORD MOTOR COMPANY

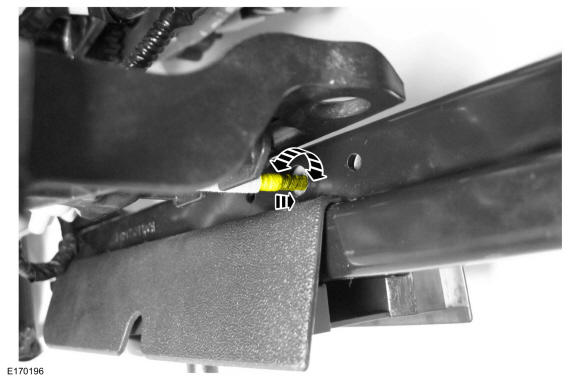

Reposition the front seat track motor drive cable and the front seat track motor into the front seat track.

Courtesy of FORD MOTOR COMPANY
Reposition the front seat track motor drive cable into the front seat track drive.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not severely bend the short cable during installation or damage to the cable will occur.

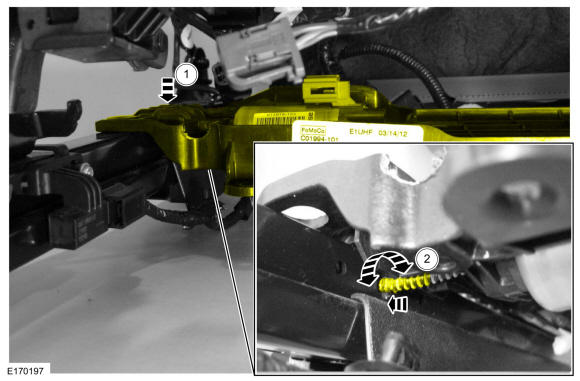

Reposition the front seat track motor and seat track drive cable into the front seat track and drive.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not cross-thread the bolts; they are load-bearing. If the bolts are cross-threaded, a new seat track must be installed.

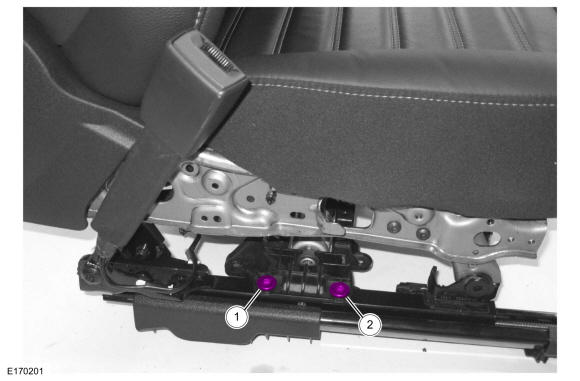

Install the 4 new front seat track motor bolts.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Reposition the wire harness and secure the 3 retainers.

Courtesy of FORD MOTOR COMPANY
Connect the front seat track motor electrical connector, reposition the wire harness and secure the retainer.

Courtesy of FORD MOTOR COMPANY
Reposition the wire harness and secure the retainer.

Courtesy of FORD MOTOR COMPANY

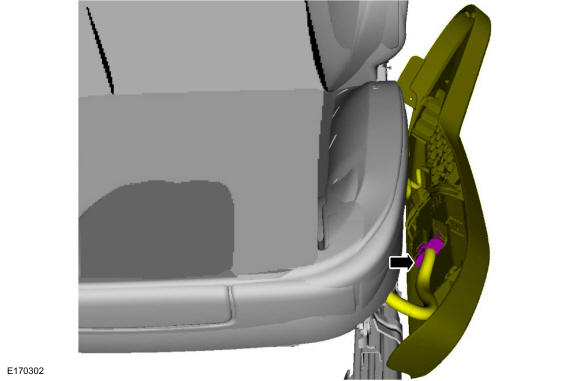

Position the front seat cushion side shield and connect the front seat control switch electrical connector.

Courtesy of FORD MOTOR COMPANY

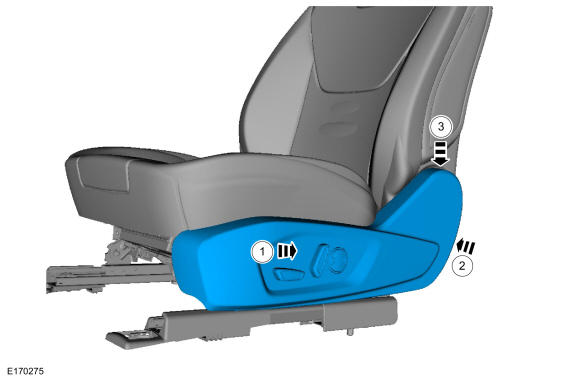

1. Position the front seat cushion side shield into the front seat track and slide rearward to engage into the bracket.
2. Lift the rear of the front seat cushion side shield upward slightly.
3. Install the front seat cushion side shield into correct position and push downward to engage the locking tabs.
Courtesy of FORD MOTOR COMPANY
Install the 2 front seat cushion side shield screws.

Courtesy of FORD MOTOR COMPANY
Install the front seat. REFER to: Front Seat .
Driver seat
NOTE: This step is only necessary when installing a new component.

Operate the seat in all directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
