Front Seat Power Lumbar Assembly: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.

Climate Controlled Seats

  1. Remove the front seat backrest blower motor. REFER to: Front Seat Backrest Blower Motor . REFER to: Front Seat Backrest Blower Motor - Vehicles With: Black Label Trim .

    Heated Seats

  2. Move the front seat to the full upward position.
    GFD230218Courtesy of FORD MOTOR COMPANY
  3. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .

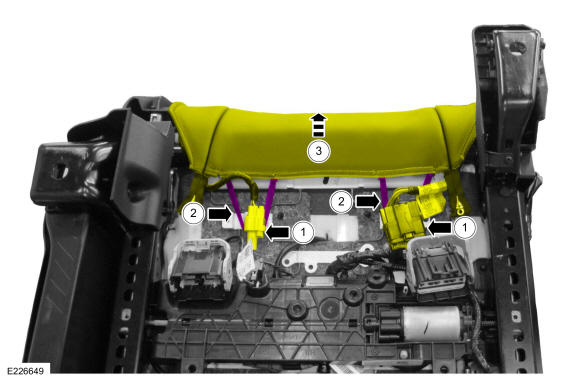

    1. Detach the wire harness electrical connector retainers and position aside.
    2. Detach the backrest cover straps.
    3. Position the backrest cover upward.
    GFD230252Courtesy of FORD MOTOR COMPANY

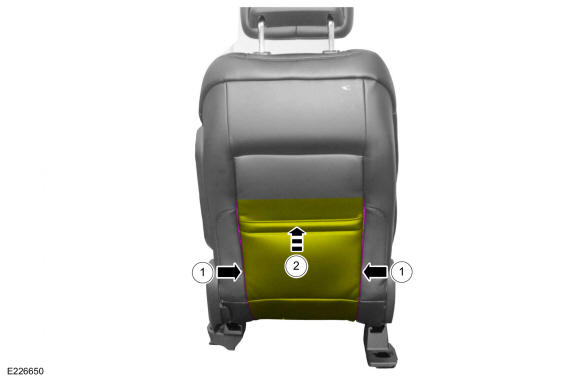

  5. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    1. Unzip the seat backrest cover.
    2. Lift the seat backrest cover.

    GFD230253Courtesy of FORD MOTOR COMPANY

    All Seats

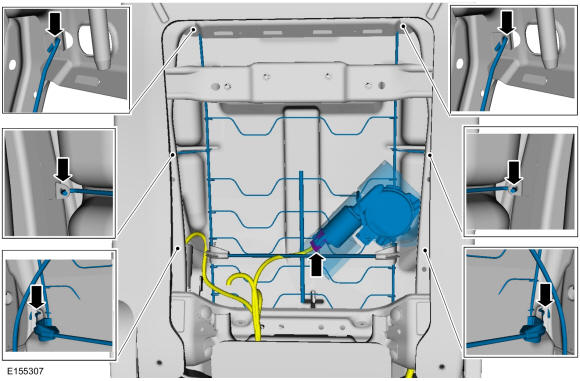

  6. Disconnect the electrical connector, release the 6 hooks and remove the front seat power lumbar assembly.
GFD230254Courtesy of FORD MOTOR COMPANY
