Front Seat Backrest: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Remove the front seat. REFER to: Front Seat .
  2. Remove the 2 front seat cushion side shield screws.
    GFD230208Courtesy of FORD MOTOR COMPANY
  3. Disconnect the front seat control switch electrical connector and remove the front seat cushion side shield.
    GFD230209Courtesy of FORD MOTOR COMPANY

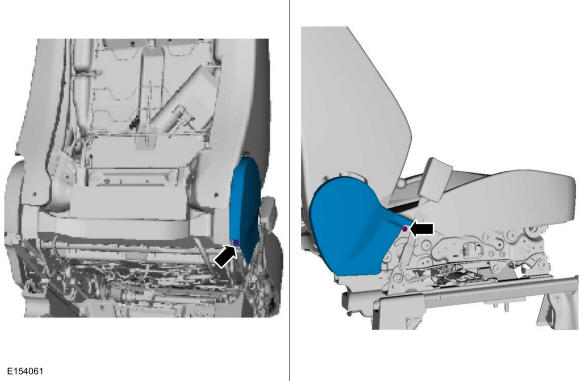

  4. Remove the 2 screws and the recliner side shield.
    GFD230210Courtesy of FORD MOTOR COMPANY
  5. Disconnect and release the 2 wire harness electrical connectors. Disconnect the 2 front seat backrest cover straps from the seat cushion frame.
    GFD230211Courtesy of FORD MOTOR COMPANY
  6. Release the 2 wire harness retainers and position the 2 wire harnesses aside.
    GFD230212Courtesy of FORD MOTOR COMPANY
  7. NOTE: Follow the unique instructions or graphic for this step in installation.

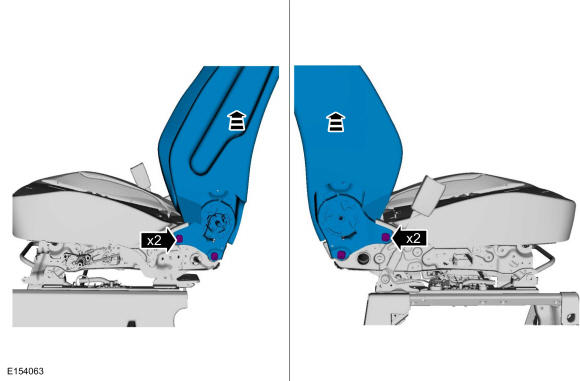

    Remove the 4 bolts and the front seat backrest.

GFD230213Courtesy of FORD MOTOR COMPANY
