Front Seat Backrest Cover: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown, passenger seat similar.
- Remove the front seat side air bag. REFER to: Side Airbag .
- Remove the front seat head restraint guide sleeves. REFER to: Front Head Restraint Guide Sleeve .

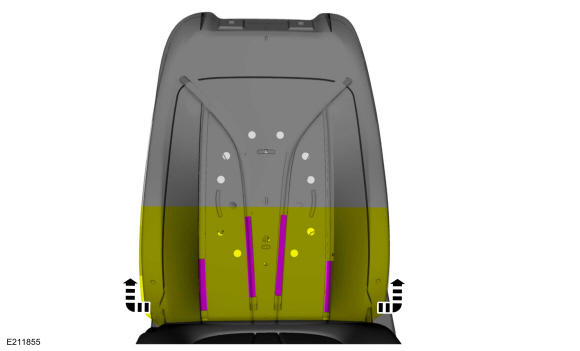

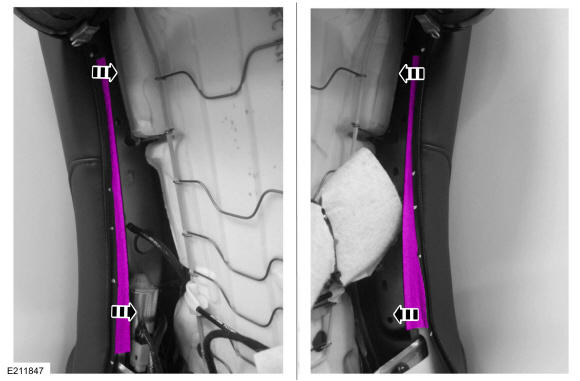

- On both sides. Detach the backrest cover side J-clips.

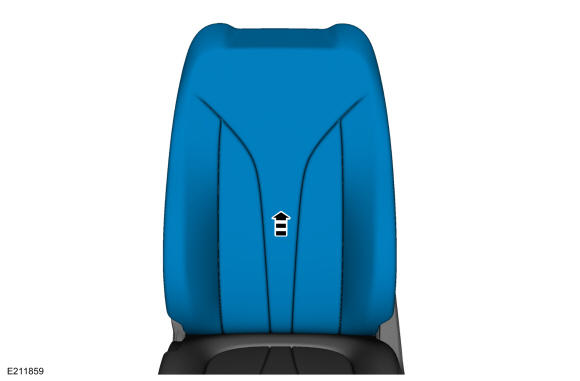

- Detach the backrest cover upper J-clip.

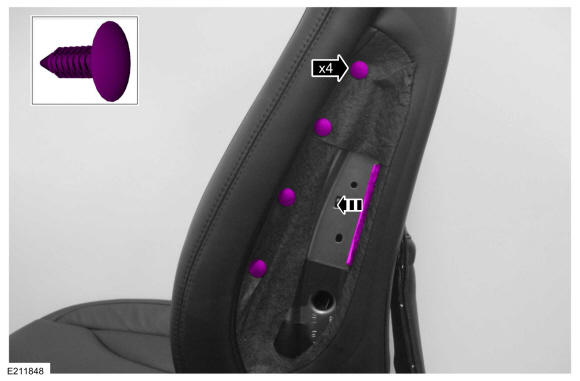

- Remove the backrest cover pin-type retainers and release the cover tab.
-
NOTE: This step is only necessary when installing a new component.

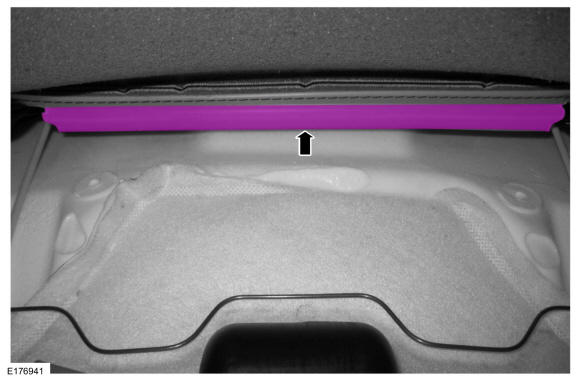

Remove the backrest cover inserts.
- Disconnect the blower motor manifold tube from the backrest cushion.
-
NOTE: Use care when separating the seat backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.

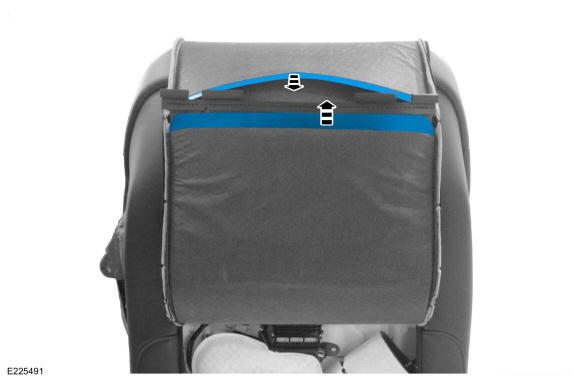

Partially invert the lower portion of the backrest cover.
- Remove the backrest cover and foam as an assembly.
-
NOTE: Use care when separating the seat backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam.NOTE: This step is only necessary when installing a new component.
Remove the backrest cover.

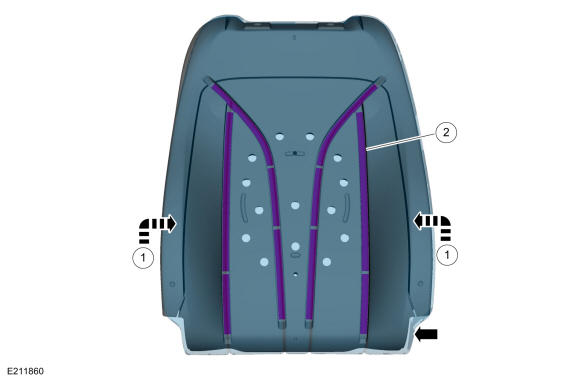

- Invert the backrest cover.
- Release the backrest cover hook-and-loop strips.
