Front Seat Backrest Cover - Vehicles With: Black Label Trim: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Backrest cover and backrest panel

Remove the front seat. REFER to: Front Seat .
Remove the front seat head restraint guide sleeves. REFER to: Front Head Restraint Guide Sleeve .

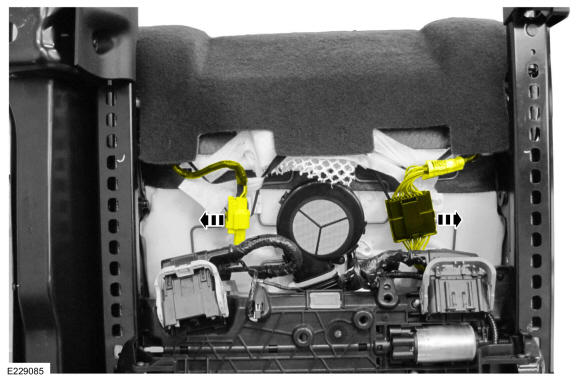

Detach the wire harness electrical connector retainers and position aside.

Courtesy of FORD MOTOR COMPANY

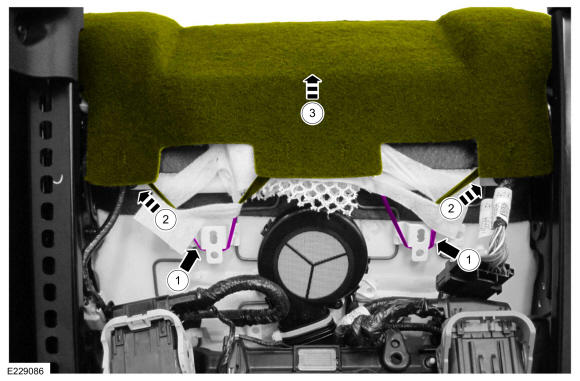

1. Detach the backrest cover straps.
2. Route the backrest cover straps through the backrest blower motor snorkel.
3. Position the backrest cover upward.
Courtesy of FORD MOTOR COMPANY
Remove the side air bag. REFER to: Side Airbag - Vehicles With: Black Label Trim .
1. Remove the backrest support screws.
2. Pull the snorkel out from between the backrest support and the backrest frame.
Courtesy of FORD MOTOR COMPANY

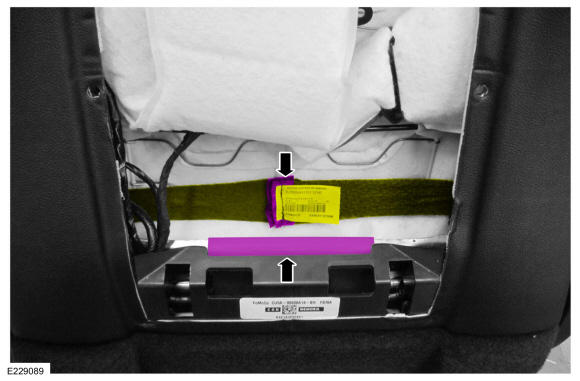

Detach the J-clip and release the backrest cover strap.

Courtesy of FORD MOTOR COMPANY

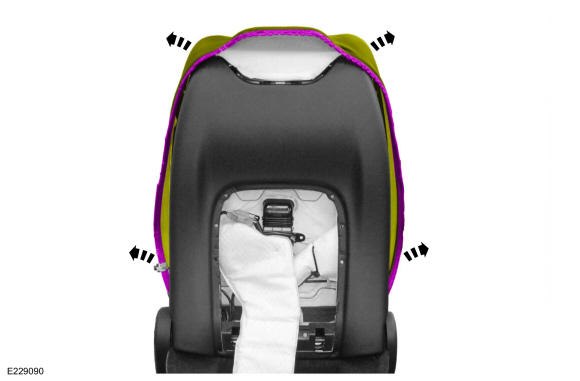

Release the front seat backrest cover from the backrest frame and position aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the seat backrest cover from the hook-and-arrow or the hook may be torn from the seat backrest foam pad.

NOTE: Use care when separating the seat backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

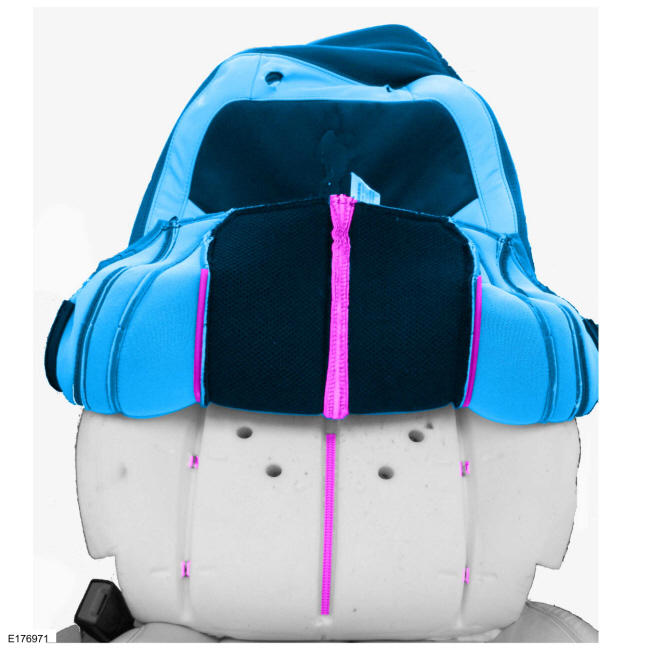

Release the hook-and-loop strips, release the hook-and-arrow strips and remove the front seat backrest cover.

Courtesy of FORD MOTOR COMPANY

Backrest panel
Disconnect the blower motor manifold from the backrest foam.

Courtesy of FORD MOTOR COMPANY

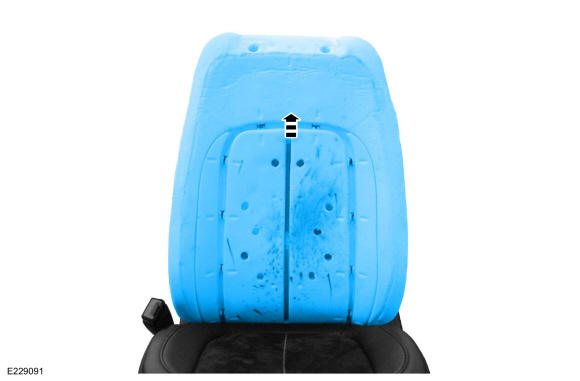

Remove the backrest foam.

Courtesy of FORD MOTOR COMPANY

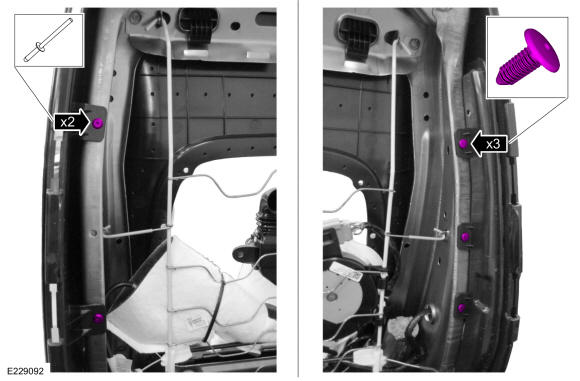

Remove the backrest panel pin-type retainer and the plastic rivets. Use the General Equipment: Blind Rivet Gun

Courtesy of FORD MOTOR COMPANY

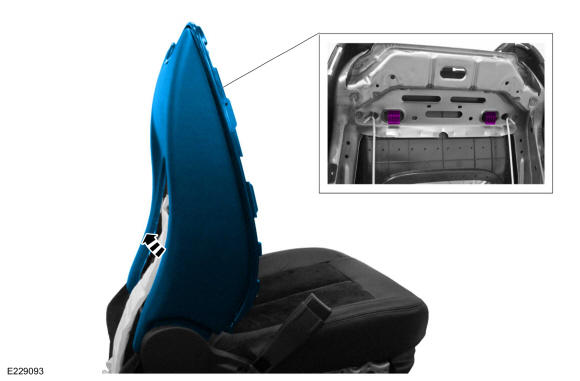

Remove the backrest panel.

Courtesy of FORD MOTOR COMPANY
