Front Seat Backrest Blower Motor: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Driver seat shown, passenger seat similar.
  1. Move the front seat to the full upward position.
    GFD230218Courtesy of FORD MOTOR COMPANY
  2. Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .
  3. Detach the wire harness electrical connector retainers and position aside.
    GFD230219Courtesy of FORD MOTOR COMPANY
    1. Detach the backrest cover straps.
    2. Route the backrest cover straps through the backrest blower motor snorkel.
    3. Position the backrest cover upward.

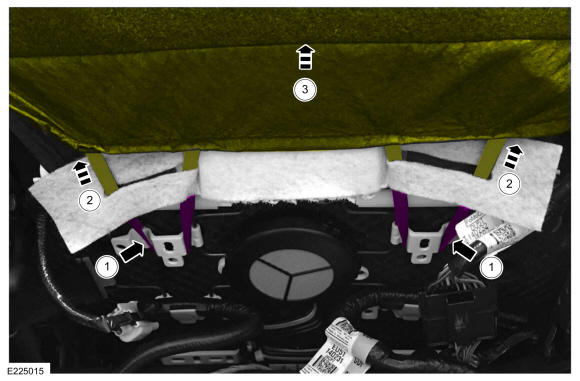

    GFD230220Courtesy of FORD MOTOR COMPANY
  5. Release the J-clip.

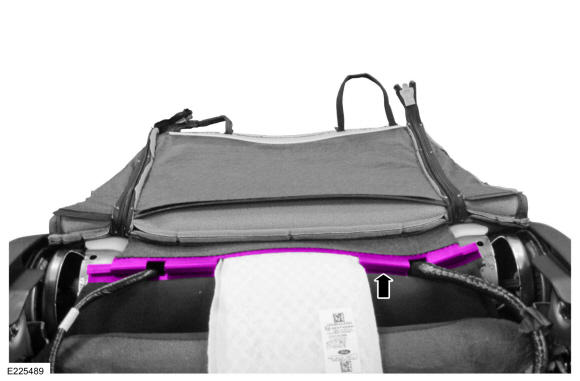

    GFD230221Courtesy of FORD MOTOR COMPANY
  6. NOTE: To install, gradually alternate the left and right seat backrest cover zippers to prevent damage to the seat backrest cover.

    1. Unzip the seat backrest cover.
    2. Lift the seat backrest cover.

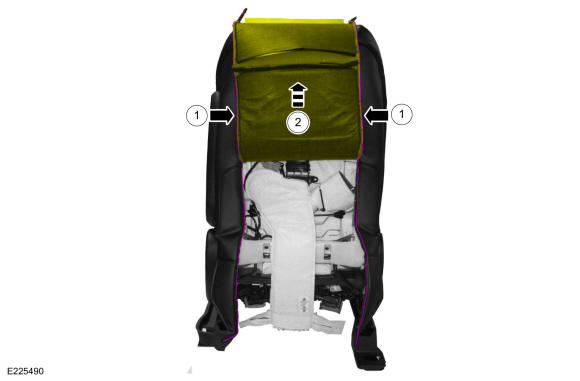

    GFD230222Courtesy of FORD MOTOR COMPANY
  7. Detach the backrest wire harness retainer and disconnect the blower motor electrical connector.

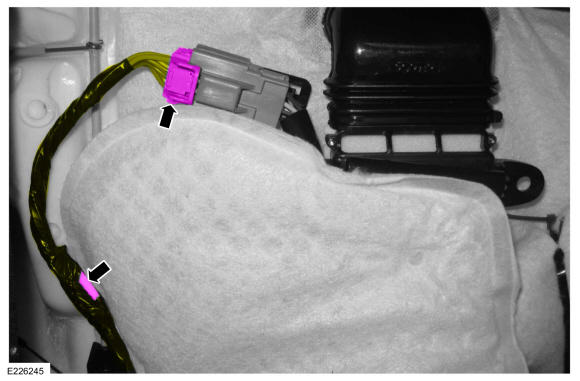

    GFD230223Courtesy of FORD MOTOR COMPANY

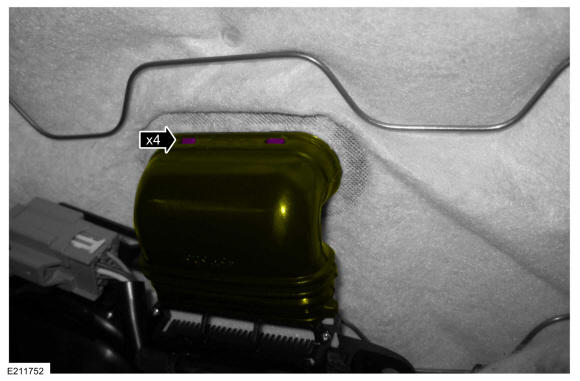

  8. Disconnect the blower motor manifold from the backrest foam.
    GFD230224Courtesy of FORD MOTOR COMPANY
  9. NOTE: The backrest cover and backrest foam have been removed for clarity.

    Remove the blower motor.

    1. Release the blower motor horizontal retainer.
    2. Release the blower motor vertical retainers.

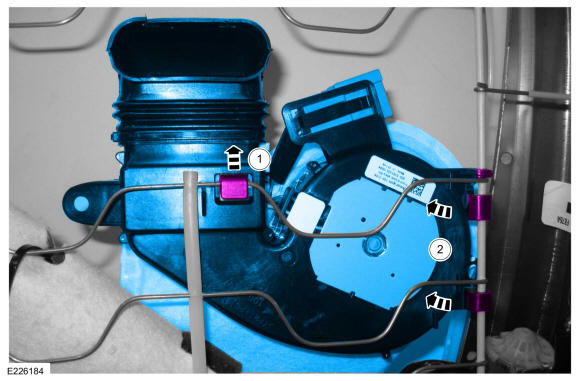

GFD230225Courtesy of FORD MOTOR COMPANY
