Front Seat Backrest Blower Motor - Vehicles With: Black Label Trim: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver seat shown, passenger seat similar.

Move the front seat to the full upward position.

Courtesy of FORD MOTOR COMPANY
Depower the SRS. REFER to: Supplemental Restraint System (SRS) Depowering .

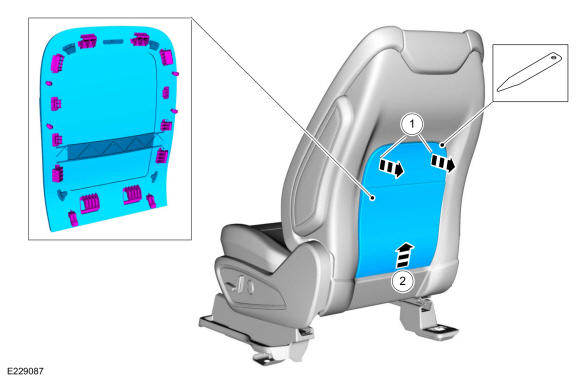

Remove the front seat back panel.
1. Release the locking tabs and pin-type retainers. Use the General Equipment: Interior Trim Remover
2. Slide the front seat back panel upward.
Courtesy of FORD MOTOR COMPANY

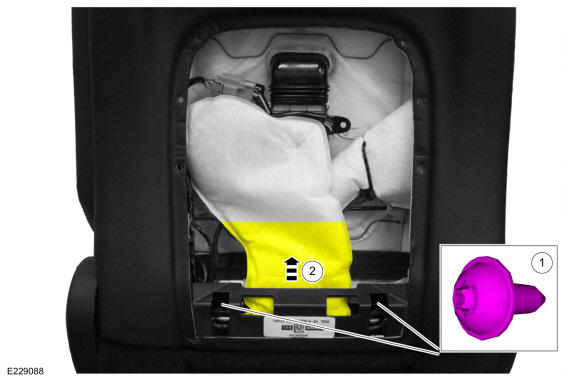

1. Remove the backrest support screws.
2. Pull the snorkel out from between the backrest support and the backrest frame.
Courtesy of FORD MOTOR COMPANY
Detach the backrest wire harness retainer and disconnect the blower motor electrical connector.

Courtesy of FORD MOTOR COMPANY
Disconnect the blower motor manifold from the backrest foam.

Courtesy of FORD MOTOR COMPANY
NOTE: The backrest cover and backrest foam have been removed for clarity.

Remove the blower motor.
1. Release the blower motor horizontal retainer.
2. Release the blower motor vertical retainers.

Courtesy of FORD MOTOR COMPANY
