Front Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Typical head restraint guide sleeve shown, others similar.

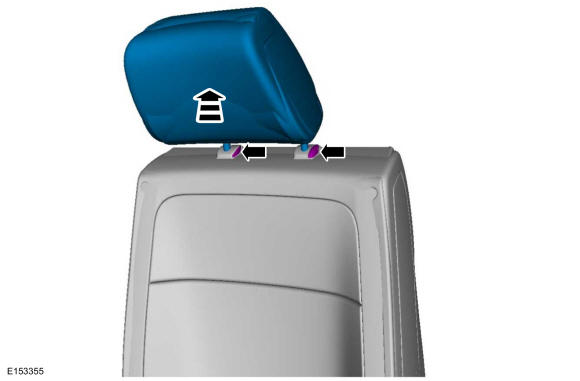

  1. Release the locking tabs and remove the head restraint.
    GFD230200Courtesy of FORD MOTOR COMPANY
  2. NOTE: Follow the unique instructions or graphic for this step in the installation.

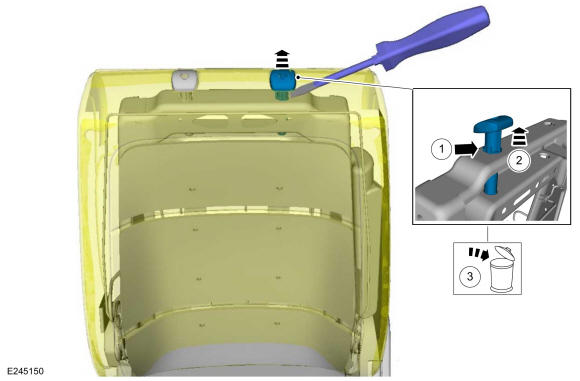

    Remove the head restraint guide sleeves.

    1. Release the locking tabs. Use the General Equipment: Flat Headed Screw Driver
    2. Remove the head restraint guide sleeves.
    3. Discard the head restraint guide sleeves.

GFD230201Courtesy of FORD MOTOR COMPANY
