Steering Column Shrouds: Removal
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
- Fully extend and lower the steering column.

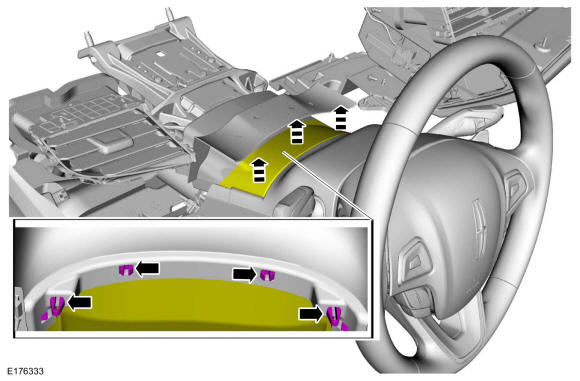

- Release the upper gap hider from the upper steering column shroud.

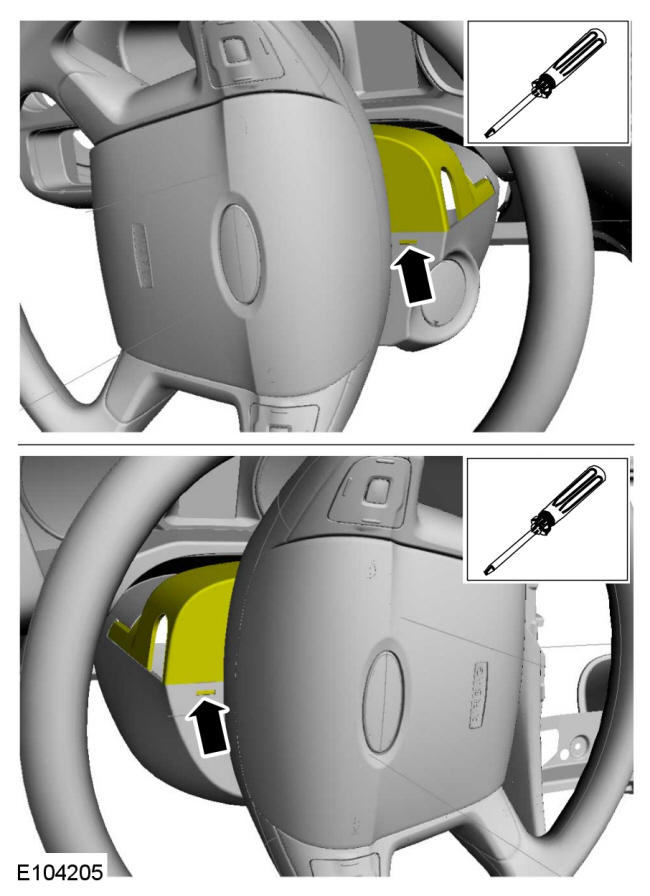

- Release the 2 upper steering column shroud-to-lower steering column shroud clips. Use the General Equipment: Flat Headed Screw Driver

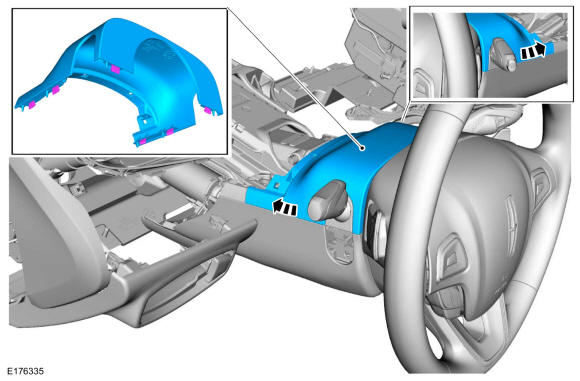

- Release the 2 outer clips on each side and remove the upper steering column shroud.
-
NOTE: Knee bolster removed for clarity.

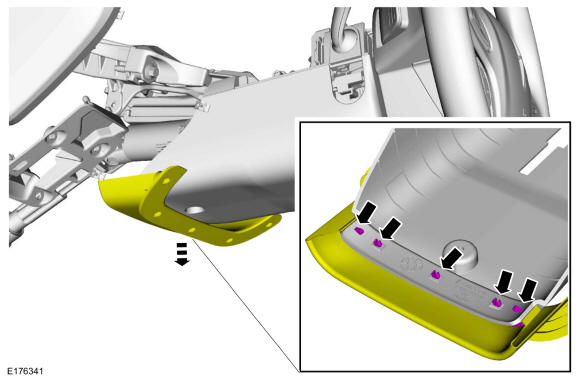

Release the lower gap hider from the lower steering column shroud.

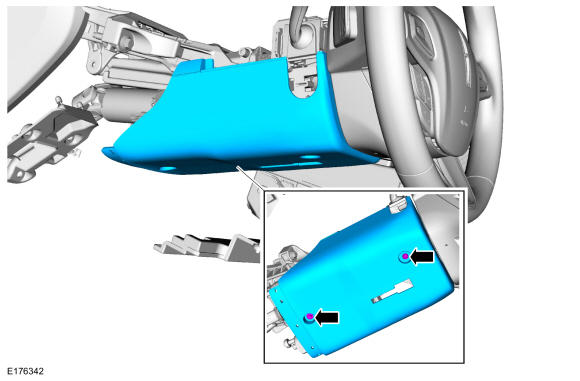

- Remove the 2 lower steering column shroud retainers and the lower steering column shroud.
