Rear Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

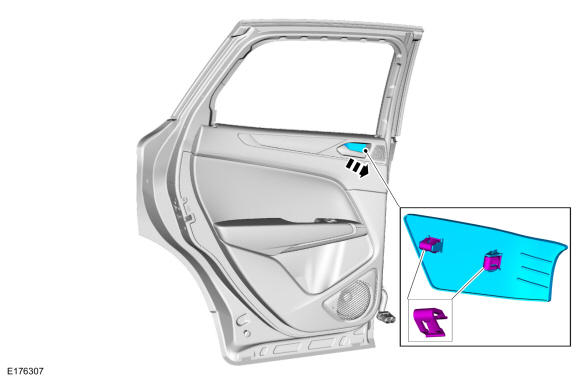

Remove the rear door trim panel upper bolt cover.

Courtesy of FORD MOTOR COMPANY

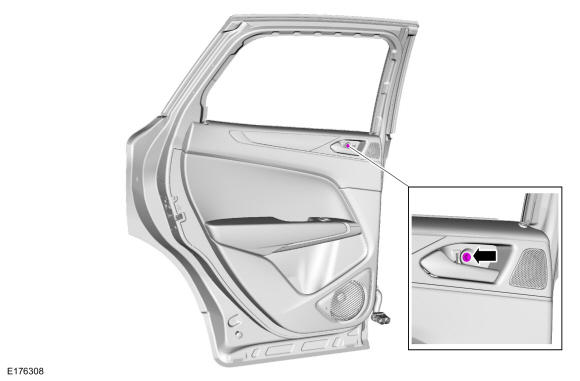

Remove the rear door trim panel upper bolt.
Torque: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear door window control switch. Refer to: Rear Door Window Control Switch .

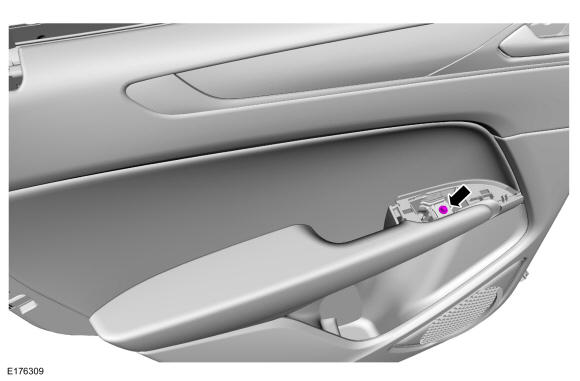

Remove the rear door trim panel center bolt.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

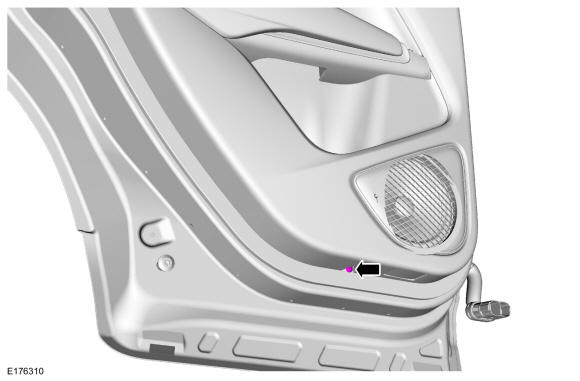

Remove the rear door trim panel lower screw.

Courtesy of FORD MOTOR COMPANY

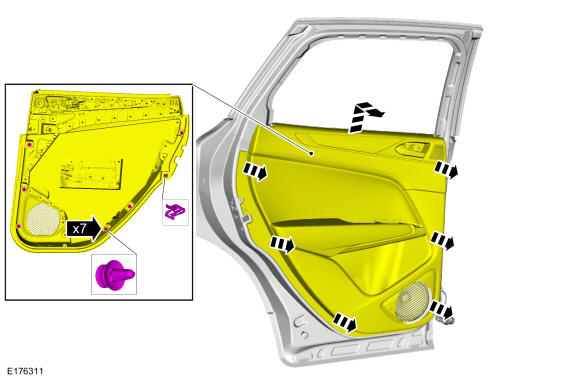

Release the rear door trim panel clips.

Courtesy of FORD MOTOR COMPANY

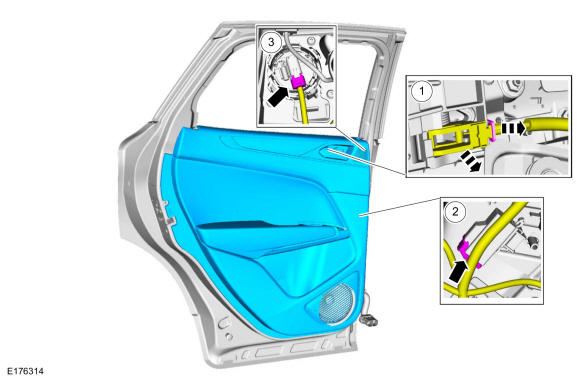

1. Disconnect the latch cable.
2. If equipped, disconnect the ambient lighting electrical connector.
3. If equipped, disconnect the rear door radio speaker electrical connector and remove the rear door trim panel.

Courtesy of FORD MOTOR COMPANY
