Loadspace Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Courtesy of FORD MOTOR COMPANY
Refer to: Rear Seat Cushion .

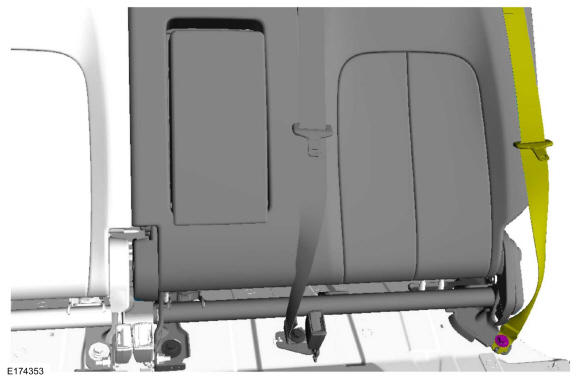

Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

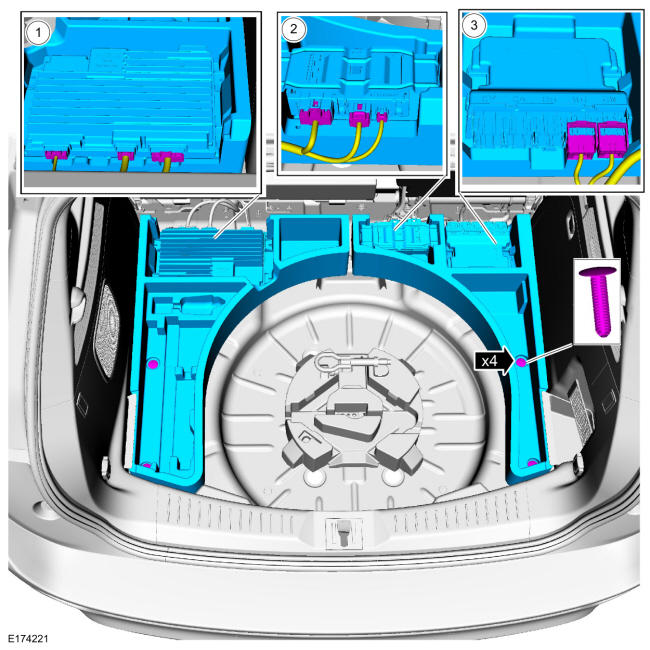

1. If equipped.
2. If equipped.
3. If equipped.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

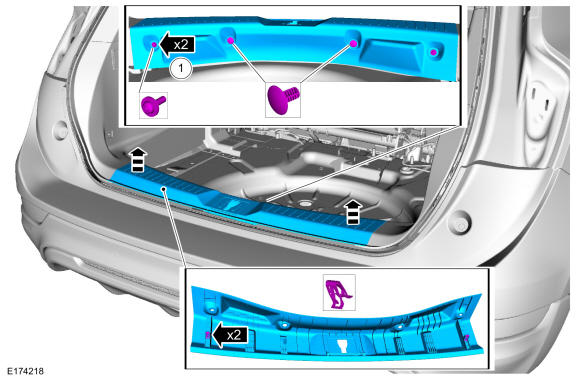

Torque: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
