Front Door Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

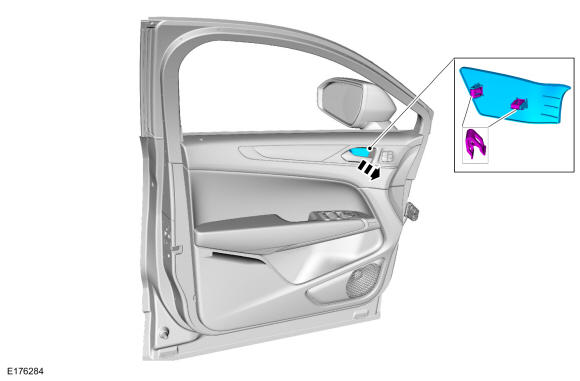

Remove the front door trim panel upper bolt cover.

Courtesy of FORD MOTOR COMPANY

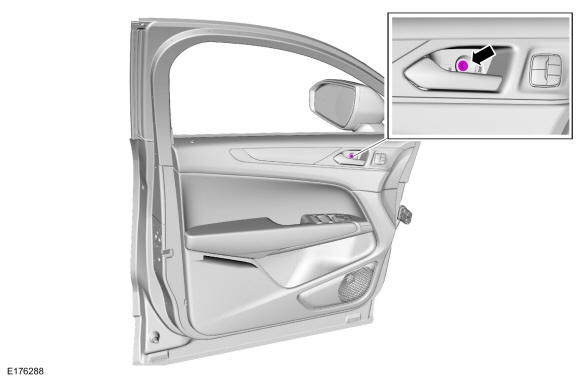

Remove the front door trim panel upper bolt.
Torque: 19 lb.in (2.2 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the front door window control switch. Refer to: Front Door Window Control Switch .

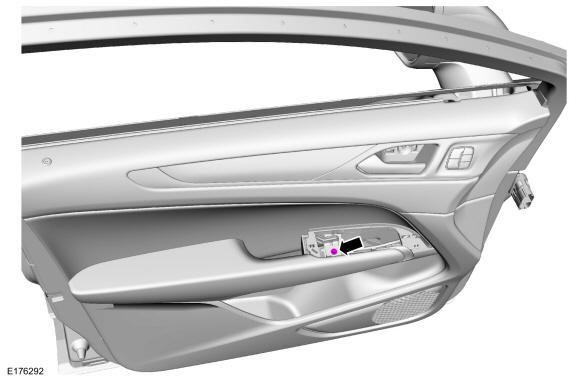

Remove the front door trim panel center bolt.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

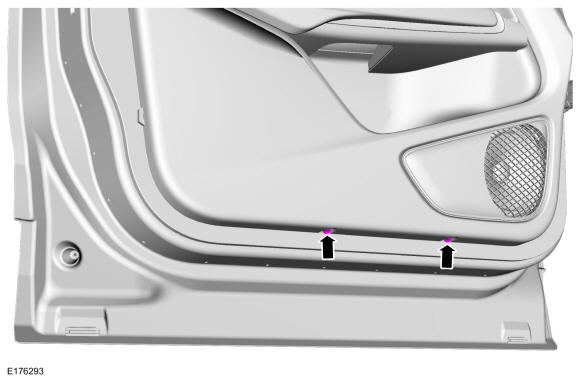

Remove the 2 front door trim panel lower screws.

Courtesy of FORD MOTOR COMPANY

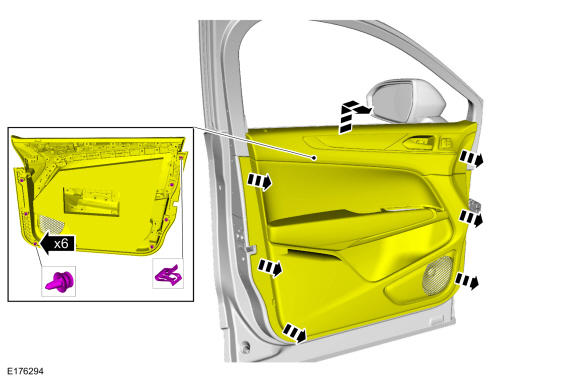

Release the front door trim panel clips.

Courtesy of FORD MOTOR COMPANY

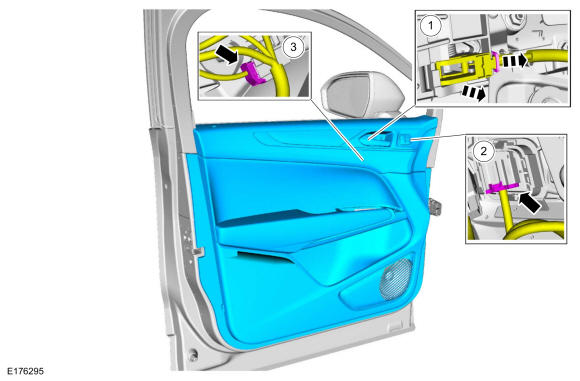

1. Disconnect the latch cable.
2. Disconnect the power lock switch.
3. If equipped, disconnect the ambient lighting electrical connector and remove the front door trim panel.

Courtesy of FORD MOTOR COMPANY
