C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

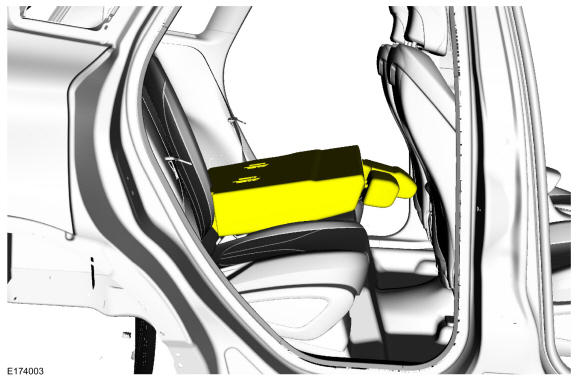

Position the rear seat backrest down.

Courtesy of FORD MOTOR COMPANY

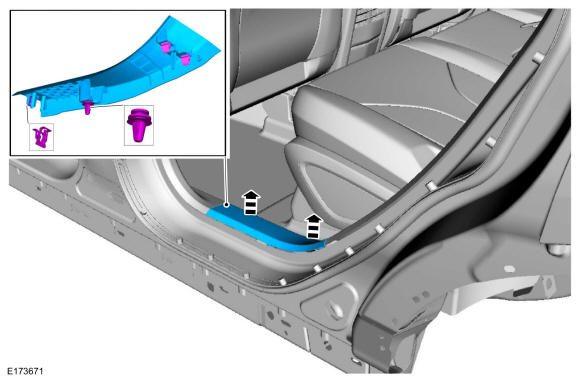

Release the clips and remove the rear door scuff plate trim panel.

Courtesy of FORD MOTOR COMPANY
If equipped, remove the luggage compartment cover.

Courtesy of FORD MOTOR COMPANY

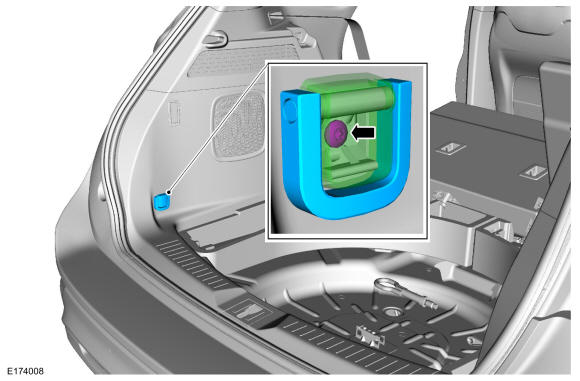

Remove the cover, the retainer and the luggage compartment tie down hook.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

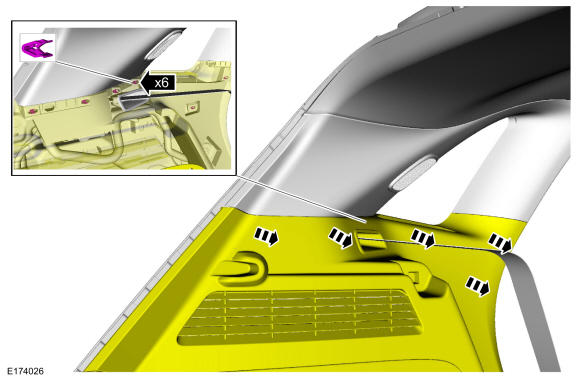

Release the clips and position aside the loadspace trim panel.

Courtesy of FORD MOTOR COMPANY

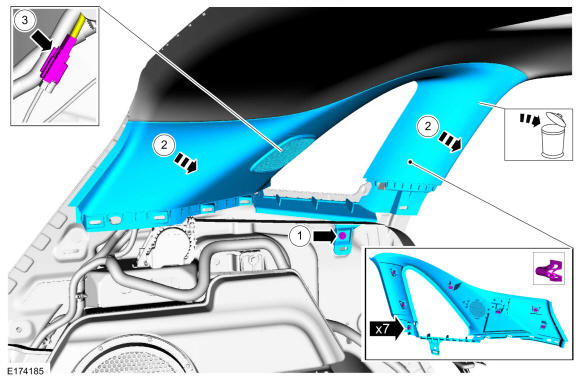

1. Remove the retainer.
  Torque: 80 lb.in (9 Nm)
2. Release the clips.
3. If equipped, disconnect the rear speaker electrical connector and remove and discard the C-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
